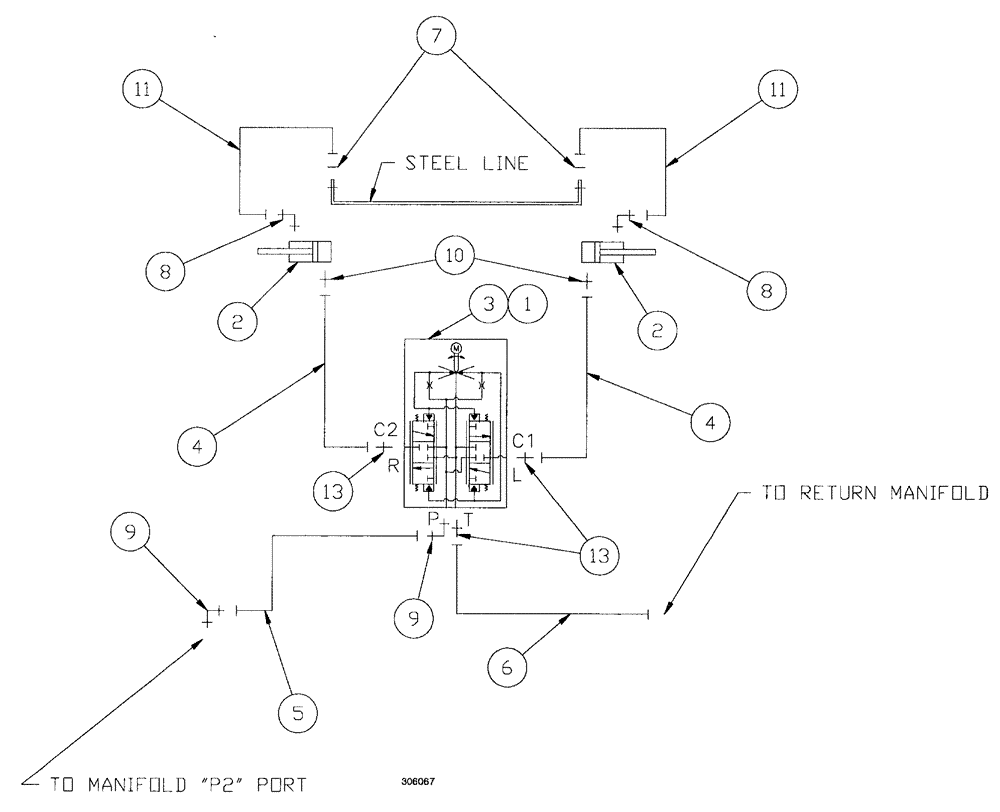

Запчасти Case IH SPX4260 (168) - 4WS HYDRAULIC GROUP (35) - HYDRAULIC SYSTEMS

1

BN312164

VALVE

PRPRTNL servo 5GPM

1шт.

2

BN307746

CYLINDER,Double Acting, 254mm Stroke

2.5 x 10, M/S, W/LIN.D

2шт.

3

BN303755

MANIFOLD

servo valve

1шт.

4

BN313337

HOSE

6 x 50"

2шт.

5

BN313336

HOSE

6 x 30"

1шт.

6

BN307814

HOSE

1шт.

7

BN305412

O-RING

for -6 FFOR

2шт.

8

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

8a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

BN302554

FITTING

6MOR-8MB x 90

2шт.

9a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

9b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

2шт.

11

BN307877

HOSE ASSY.

2шт.

13

BN302647

FITTING

6MOR - 8MB

3шт.
