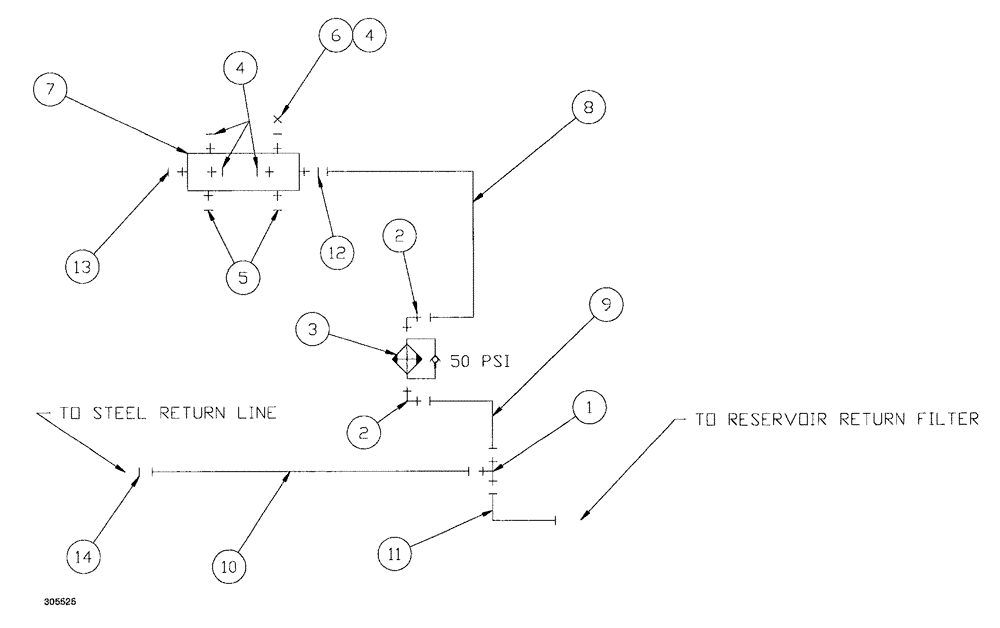

Запчасти Case IH SPX4260 (166) - OIL COOLER / MANIFOLD GROUP (35) - HYDRAULIC SYSTEMS

1

BN302520

FITTING

20MOR-20MOR-20MOR

1шт.

2

BN302574

ELBOW

16MOR-16MB x 90

2шт.

2a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.

O-ring boss end

1шт.

2b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face seal end

1шт.

3

BN302886

COOLER, OIL

HYD. -778

1шт.

4

BN305412

O-RING

for -6 FFOR

4шт.

5

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

for -8 FFOR

2шт.

6

BN305426

CAP

6 FFOR

1шт.

7

BN307639

MANIFOLD

HYD. return

1шт.

8

BN307791

HOSE ASSY.

1шт.

9

BN313167

HOSE ASSY.

(-16 x 60)

1шт.

10

BN313166

HOSE ASSY.

(-20 x 16)

1шт.

11

BN313165

HOSE ASSY.

(-20 x 57)

1шт.

12

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

1шт.

13

BN53894

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

ARP standard #018

1шт.

14

BN305415

O-RING

for -20 FFOR

1шт.
