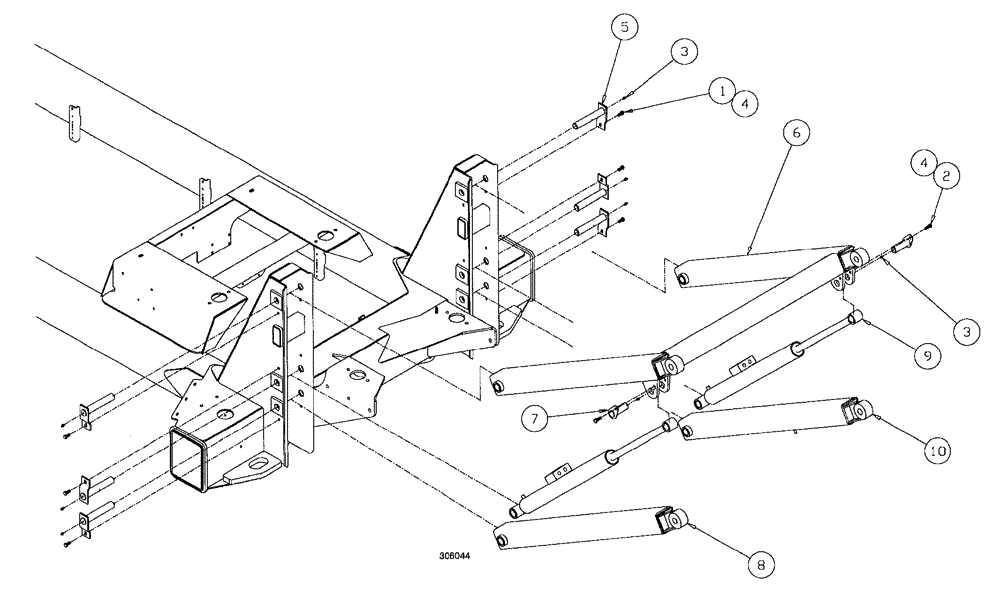

Запчасти Case IH SPX4260 (128) - PARALLEL LINK MOUNT ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

6шт.

2

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

3

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

8шт.

4

BN304419

NUT

M10-1.5, NLN, 10.9

12шт.

5

BN304742

HEADED PIN

para link

6шт.

6

BN321902

UPPER LINK

Para

1шт.

7

BN304832

HEADED PIN

para link

2шт.

8

BN309614

BUSHING

ASSY para link

2шт.

BN304734

BUSHING

spring-1 1/4" ID

2шт.

Indicates parts of an assembly

1шт.

BN304828

TUBE

para link

2шт.

Indicates parts of an assembly

1шт.

9

BN313221

CYLINDER ASSY.

BM HT.ADJ.&BUSH

2шт.

10

BN310555

LINKAGE

parallel arm

1шт.
