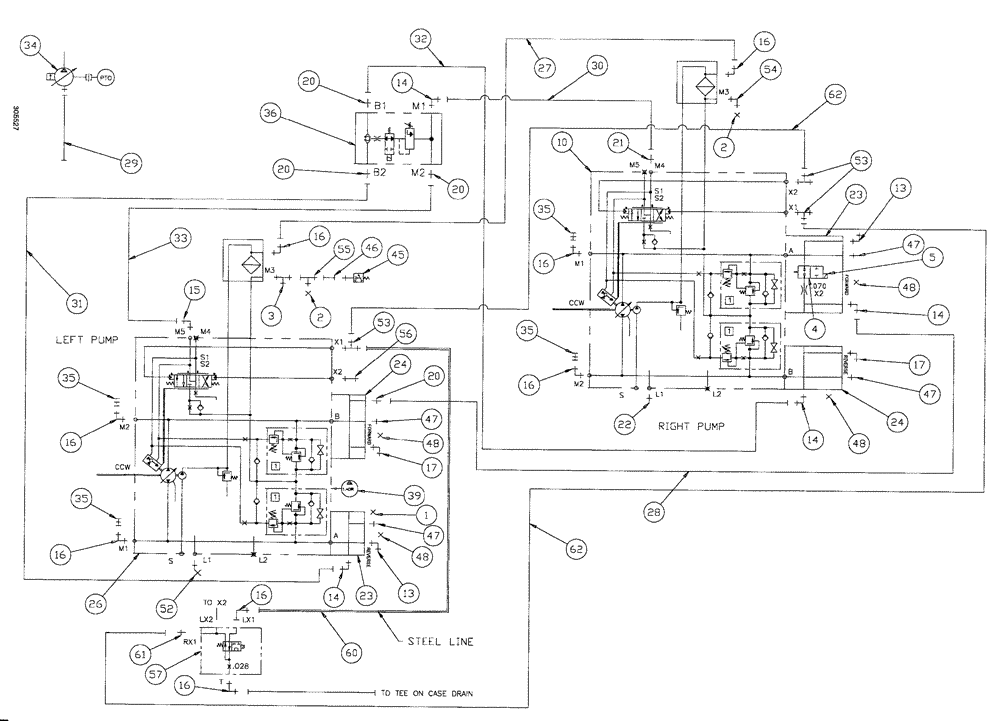

Запчасти Case IH SPX4260 (154) - HYDROSTATIC PUMP GROUP (29) - HYDROSTATIC DRIVE

1

BN21243

PLUG

Hex, 7/8"-14, O-Ring

1шт.

2

BN21531

NUT,7/16"-20, 37 Degree

2шт.

3

BN21866

TEE,9/16"-18 O-Ring x 7/16:-20, 37 Degree

1шт.

4

BN300304

SOLENOID VALVE

Traction

1шт.

5

BN300307

COIL

12 VDC, Traction

1шт.

10

REF

INSTRUCTION

PUMP, HY, 90, 75CC ,W/O A, SUN. (See Figure 192)

1шт.

11

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

12

BN301290

BOLT,Hex, M6 x 55, 8.8

2шт.

13

BN302424

ELBOW

16MOR-16MBX90LL

2шт.

14

BN302547

90 ELBOW

9/16-18 x 7/16-20, ZND

4шт.

14a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.

O-ring boss end

1шт.

14b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face seal end

1шт.

15

BN302549

ELBOW

4MOR-6MB x 90

1шт.

16

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

8шт.

16a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

16b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

17

BN302574

ELBOW

16MOR-16MB x 90

2шт.

20

BN302640

FITTING

4MOR-4MB

4шт.

21

BN302641

FITTING

4MOR-6MB

1шт.

22

BN302655

FITTING

12Mor-12Mb

1шт.

23

BN304137

VALVE

block W SOL

2шт.

24

BN304138

VALVE

BLK W/O SOL

2шт.

25

86528579

NUT,M8 x 1.25

2шт.

27

BN307804

HOSE ASSY.

1шт.

26

REF

INSTRUCTION

PUMP, HYD, 90, 75CC, W/A, SUN (See Figure 192)

1шт.

28

BN307805

HOSE ASSY.

1шт.

29

BN307858

HOSE ASSY.

1шт.

30

BN307885

HOSE ASSY.

1шт.

31

BN307886

HOSE ASSY.

1шт.

32

BN307887

HOSE ASSY.

4 x 28"

1шт.

33

BN307888

HOSE ASSY.

1шт.

34

BN307909

PUMP

ASSY AUX

1шт.

35

BN307993

NIPPLE, LUBE

NIPPLE diagnostic, 6FFOR

4шт.

39

BN310917

PUMP

group DED.

1шт.

36

REF

INSTRUCTION

VALVE- pressure limiter (See Figure 183)

1шт.

40

BN311206

BRACKET

block mount

1шт.

43

50889

BOLT Hex, 7/16"-14 x 2 3/4", G5

16шт.

45

BN53950

SENSOR

Pressure, N.O.200 PSI

1шт.

46

BN53961

ADAPTER

Int. Pipe-37 Flare

1шт.

47

BN57223

FITTING

STR 1-5/16 12 O-Ring x 1-7/16 12 Male Flat Face

4шт.

48

BN60479

PLUG

15/16-12, o-ring hex

4шт.

49

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

*50

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

*52

BN302639

ELBOW

12 MOR-12 MB x 45

1шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

53

BN302583

FITTING

6MOR-6MOR-6MBX

3шт.

54

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

1шт.

55

BN53960

TEE

JIG 1/4-20 male-female

1шт.

56

BN313038

FITTING

6MB-6MB

1шт.

57

BN314775

VALVE

shunt -2 cavity

1шт.

BN314906

VALVE

shunt body

1шт.

Indicates service parts for above ref. number

1шт.

BN314943

VALVE

solenoid sterling

1шт.

Indicates service parts for above ref. number

1шт.

60

BN314930

TUBE

HYD. shunt 90

1шт.

61

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

1шт.

62

BN314945

HOSE ASSY.

2шт.
