(148) - HUB ASSEMBLY 22:1, 27:1

Запчасти Case IH SPX4260 (148) - HUB ASSEMBLY 22:1, 27:1 (29) - HYDROSTATIC DRIVE

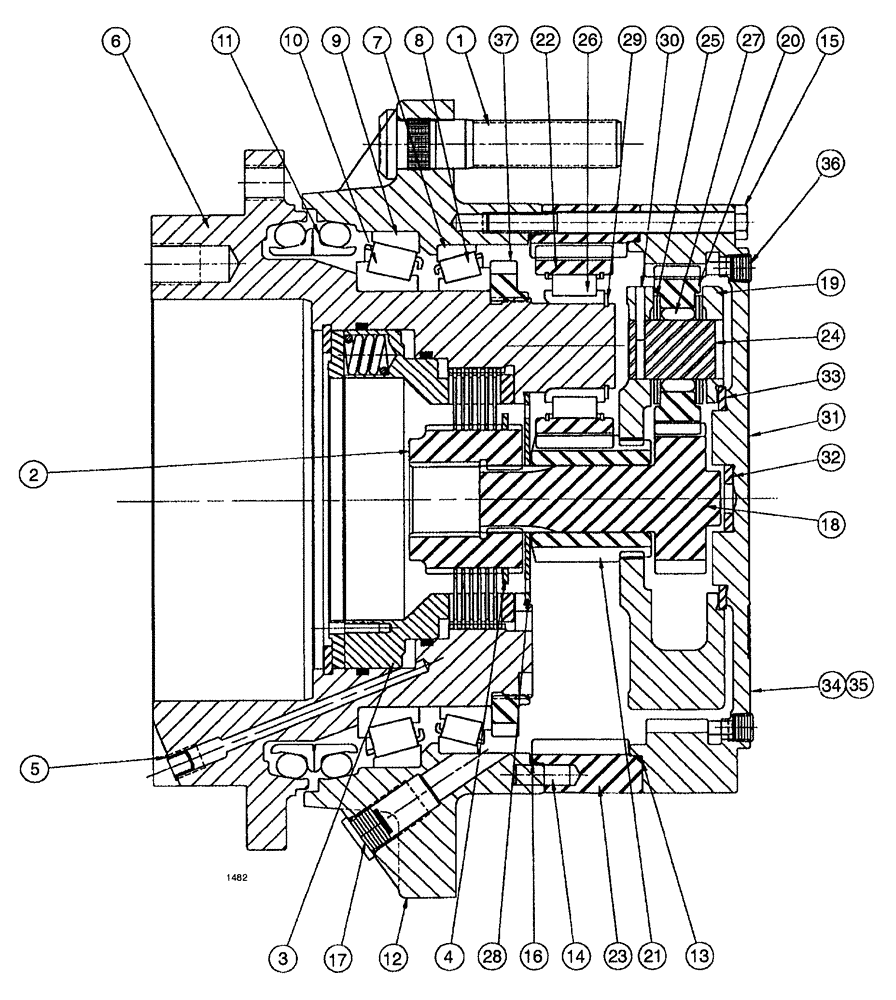

Схема запчастей Case IH SPX4260 - (148) - HUB ASSEMBLY 22:1, 27:1 (29) - HYDROSTATIC DRIVE
9
23
27
24
2
32
11
35
6
33
22
26
1
18
17
29
34
19
4
28
7
30
16
25
36
10
21
31
8
13
5
3
37
20
12
14
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

BN319344

HUB

Assembly (22:1)

1шт.

BN319345

HUB

Assembly (27:1)

1шт.

1

BN311380

STUD

10шт.

2

BN311381

COUPLING

1шт.

3

BN311382

BRAKE

Input Kit, W/ Discs

1шт.

4

BN311383

SNAP RING

Ext.

1шт.

5

BN311384

PLUG

plastic

1шт.

6

BN319357

SPINDLE

Hardened, CW12

1шт.

7

BN311386

BEARING, CUP

tapered-cup

1шт.

8

BN311387

ROLLER BEARING

tapered

1шт.

9

BN311388

BEARING, CUP

tapered

1шт.

10

BN311389

ROLLER BEARING

tapered

1шт.

11

BN311390

SEAL

face

1шт.

12

BN311391

HOUSING

1шт.

13

BN311392

O-RING

1шт.

14

BN311393

PIN

dowel

2шт.

15

BN311394

BOLT

hex-unc

20шт.

16

BN311395

O-RING

1шт.

17

BN311396

PLUG

pipe special

2шт.

18

BN311397

GEAR

sun (22:1)

1шт.

BN311398

GEAR

sun (27:1)

1шт.

Indicates an "or" situation

1шт.

19

BN311399

HUB CARRIER

22:1

1шт.

BN311400

HUB CARRIER

27:1

1шт.

Indicates an "or" situation

1шт.

20

BN311410

PLANETARY GEAR

(22:1)

3шт.

BN311411

PLANETARY GEAR

(27:1)

3шт.

Indicates an "or" situation

1шт.

21

BN311413

GEAR

sun

1шт.

22

BN311414

GEAR

planet

3шт.

23

BN311415

GEAR, RING

RING, GEAR

1шт.

24

BN311416

SHAFT

planet

3шт.

25

BN311417

WASHER, THRUST

12шт.

26

BN311418

BEARING, ROLLER, CYL

cyl roller

3шт.

26a

84545559

SNAP RING

Roller Bearing, Used To Hold Ref 26 In Place

6шт.

27

BN311419

BEARING, NEEDLE

57шт.

28

BN311420

SPACER

thrust

1шт.

29

BN311421

RETAINER

ring-ext

3шт.

30

BN311422

GROOVED PIN

3шт.

31

BN311423

COVER

Plate

1шт.

32

BN311424

WASHER, THRUST

1шт.

33

BN311425

THRUST WASHER

1шт.

34

BN311426

PLATE

ID

1шт.

35

BN311427

SCREW

drive

2шт.

36

BN311430

PLUG

Pipe, Magn-NPTF

3шт.

37

BN311431

BEARING LOCK NUT

1шт.

38

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

40шт.

Not Shown

1шт.

39

BN304226

BOLT

M16-2X45,FH,10.9

68шт.

Not Shown

1шт.

40

BN305432

ADAPTER

4MFFOR-M12X1.5

4шт.

Not Shown

1шт.

41

BN306152

SPACER

wheel hub

2шт.

Not Shown

1шт.

42

84473524

SEAL KIT

Brake Input Seal, Not Shown

1шт.
