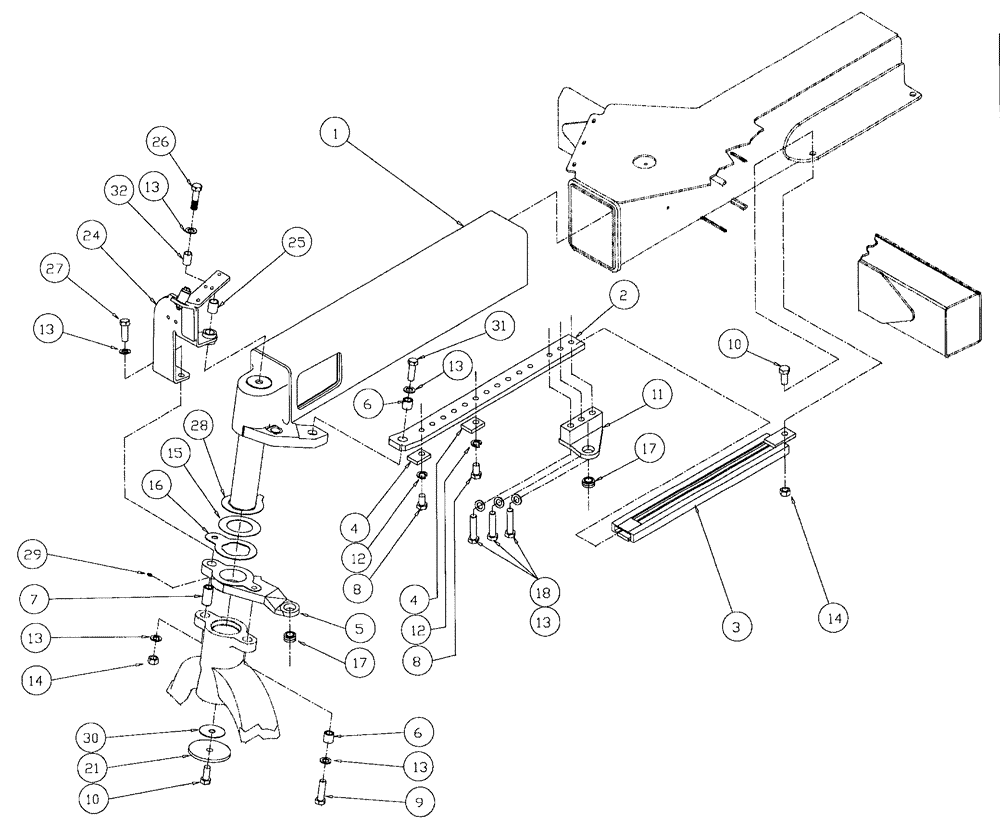

Запчасти Case IH SPX4260 (102) - AXLE ASSEMBLY STEER LF (25) - FRONT AXLE SYSTEM

1

BN312607

AXLE

ASSEMBLY 120-152 LH

1шт.

2

BN301937

BAR

axle adjust

1шт.

3

BN301944

SLIDE

1шт.

4

BN301938

STOP

2шт.

5

BN312632

STEERING ARM

LH

1шт.

6

BN301998

DOWEL

Hollow

2шт.

7

BN301997

DOWEL

hollow

1шт.

8

953029

BOLT,Hex, M20 x 35mm, Cl 8.8

2шт.

9

86639154

BOLT,Hex, M20 x 65mm, Cl 10.9

1шт.

10

86500658

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9

2шт.

11

BN313103

SUPPORT

cylinder LH

1шт.

12

BN300528

LOCK WASHER

M20, 10.9

2шт.

13

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

8шт.

14

380424

NUT,M20 x 2.5, Cl 8

2шт.

15

BN302028

WASHER, THRUST

1шт.

16

BN312983

WASHER, THRUST

1шт.

17

87267020

SPHERICAL BEARING,0.875" ID x 1.5625" OD x 0.703"

Spherical, 1.56" OD .875"

2шт.

18

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

3шт.

21

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

24

PIVOT HOSE MNT ASSY.LF (See Figure 109)

1шт.

25

BN307708

BUSHING

UHMW hose

1шт.

26

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

1шт.

27

9843612

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

1шт.

28

BN312988

WASHER, THRUST

LH

1шт.

29

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.

30

BN312604

SPACER

shim - axle

1шт.

31

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

1шт.

32

BN313691

BUSHING

tube

1шт.
