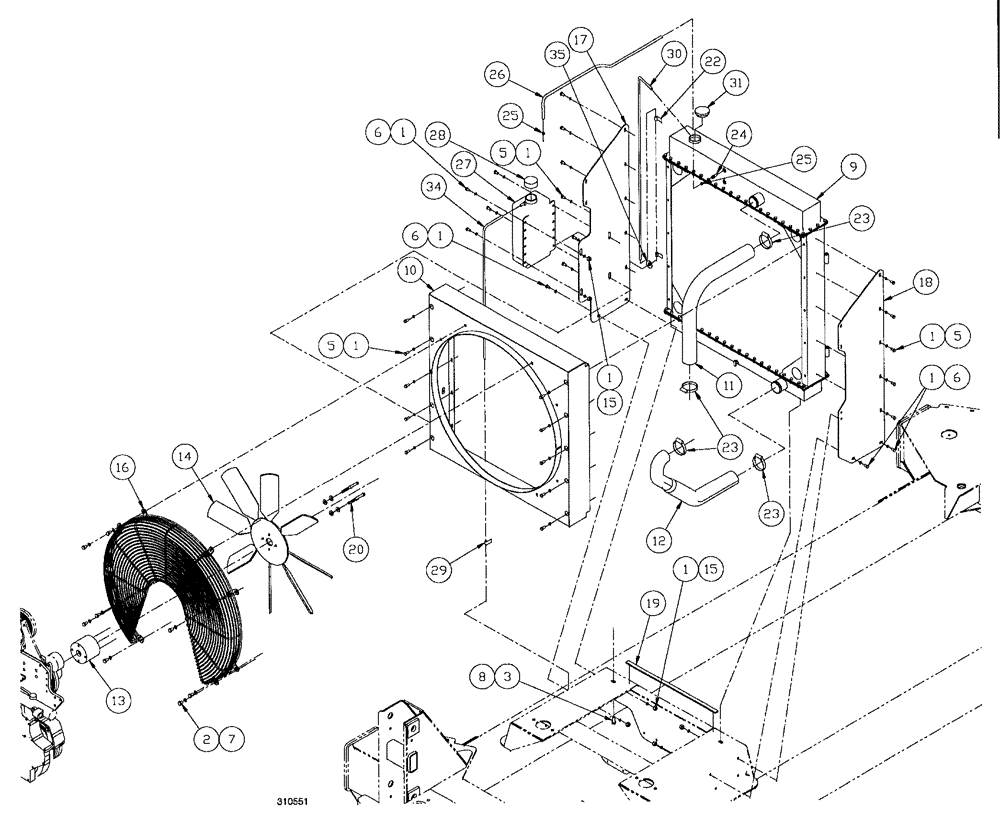

Запчасти Case IH SPX4260 (088) - RADIATOR / FAN GROUP (10) - ENGINE

1

BN300497

WASHER,M8, 10.9

34шт.

2

BN300499

WASHER,M10, 10.9

12шт.

3

BN300500

WASHER,M12, 10.9

2шт.

4

BN301020

BOLT,Hex, M8 x 16, 10.9

10шт.

5

80043233

SCREW

Hex, M8 x 20, 10.9

20шт.

6

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

7

BN301043

BOLT,Hex, M10 x 16, 10.9, Full Thd

8шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

9

BN310322

RADIATOR

778-CDC engine

1шт.

10

BN310233

SHIELD

radiator shroud

1шт.

11

BN310357

RADIATOR HOSE,2.25" ID x 17.67", SAE 20R4

Upper

1шт.

12

BN310356

RADIATOR HOSE,2.38" ID, 2.50" ID x 18.05", SAE 20R4

Lower

1шт.

13

A184548

SPACER,Fan, 89/90mm Thk

Fan, 90 mm

1шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

14

BN310251

FAN

32" diameter

1шт.

15

86528579

NUT,M8 x 1.25

6шт.

16

BN304525

GUARD

finger fan

1шт.

17

BN312991

SUPPORT

radiator, LH

1шт.

18

BN310243

SUPPORT

radiator, RH

1шт.

19

BN309400

FOAM

weather strip

1шт.

20

BN301343

BOLT,Hex, M10 x 120, 10.9

4шт.

22

BN65181

RETAINER

radiator drain hose

2шт.

23

J918521

HOSE CLAMP,59mm - 83mm

radiator (59-83MM)

4шт.

24

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

25

BN76094

HOSE CLAMP

SS #M4

2шт.

26

BN311051

HOSE,0.38" ID x 36.00", SAE 30R6, SAE 30R7

Fuel

2шт.

27

87481454

BOTTLE

Tank, Coolant Recovery, 5 qt

1шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

28

1547924C1

CAP

coolant recovery bottle

1шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

29

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

30

BN313031

HOSE,0.31" ID x 51.50"

Fuel Line

1шт.

31

BN313037

CAP

radiator, 15 psi

1шт.

34

BN314262

HOSE,0.31" ID x 36.00"

Rubber

1шт.

35

BN2290745

GROMMET

2864 (5/8" Hole)

1шт.
