Запчасти Case IH SPX4260 (082) - ENGINE CONTROL GROUP (10) - ENGINE

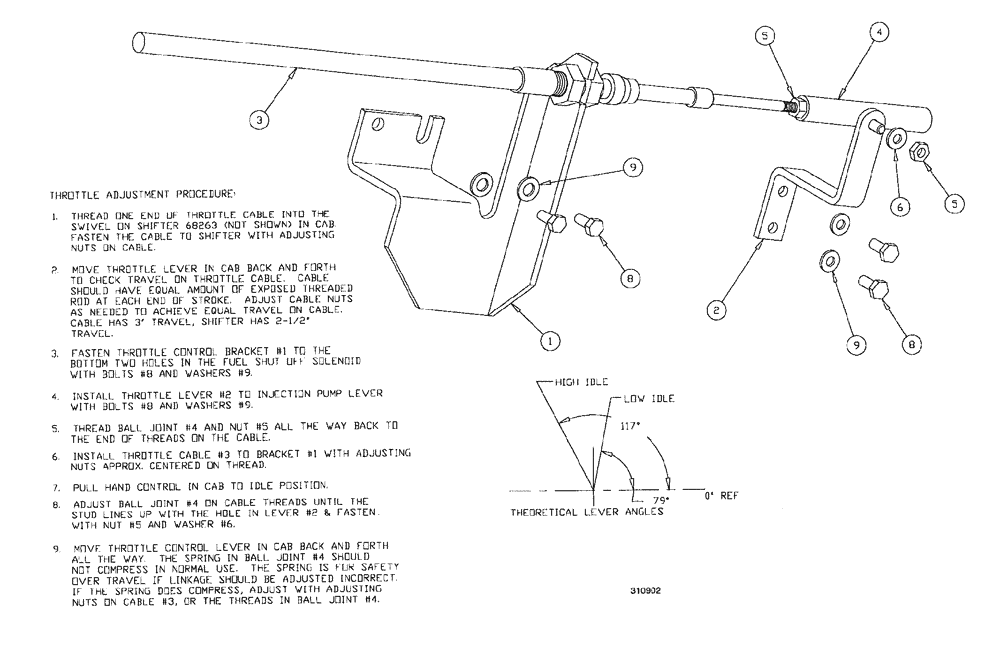

Схема запчастей Case IH SPX4260 - (082) - ENGINE CONTROL GROUP (10) - ENGINE
8
5
1
3
8
8
6
9
9
2
4

Артикул

Название

Примечание

Количество

1

BN310298

BRACKET

throttle 8.3L

1шт.

2

BN310299

LEVER

throttle cable

1шт.

3

BN25722

CABLE

Throttle Control, 202"

1шт.

4

225619A1

BALL JOINT

throttle rod

1шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

5

50055

NUT Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

6

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

1шт.

8

86639037

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

4шт.

9

BN300496

WASHER

M6, Flat, 10.9

4шт.

Выбрано товаров: 9
