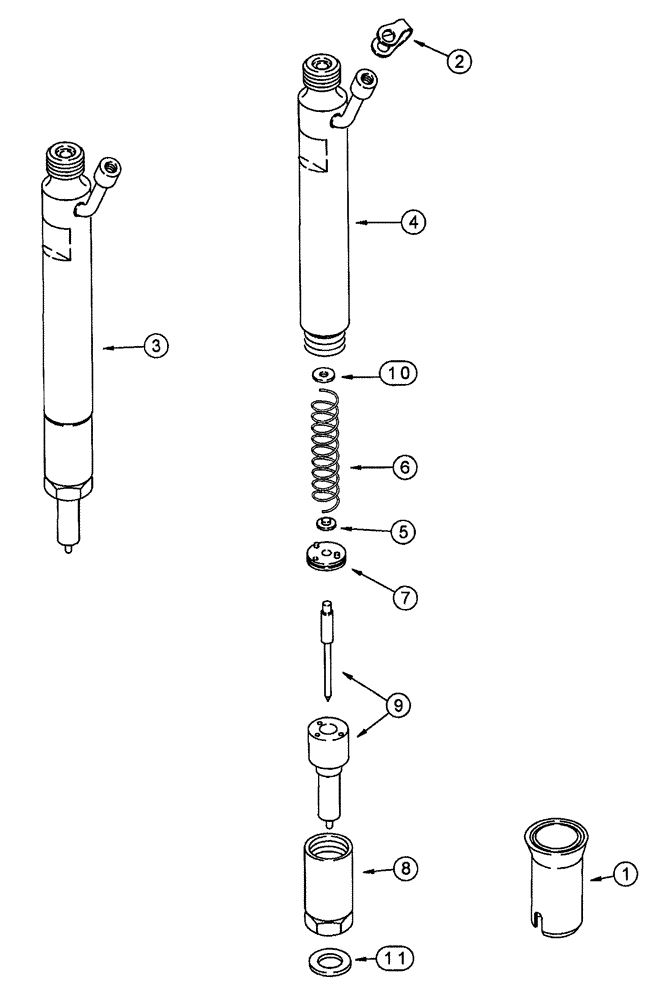

Запчасти Case IH SPX4260 (080) - FUEL INJECTION (10) - ENGINE

1

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector sealing

1шт.

2

J903380

SEAL

Banjo connector

1шт.

3

J926787

INJECTOR ASSY.

fuel bosch

1шт.

NOTE: Whenever a nozzle is removed from cylinder head, J923261 item 11 seal must be replaced before nozzle is reinstalled in cylinder head.

1шт.

4

NSS

NOT SOLD SEPARAT

BODY injector

1шт.

5

J905153

SPINDLE

SEAT nozzle pressure spring

1шт.

6

J905152

SPRING

nozzle pressure

1шт.

7

J905154

PLATE

STOP nozzle valve

1шт.

8

NSS

NOT SOLD SEPARAT

NUT capnozzle tip

1шт.

9

NSS

NOT SOLD SEPARAT

TIP injector nozzle

1шт.

10

1806233C1

SHIM,1.00mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806234C1

SHIM,1.04mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806235C1

SHIM,1.08mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806236C1

SHIM,1.10mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806237C1

SHIM,1.14mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806239C1

SHIM,1.20mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806240C1

SHIM,1.24mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806241C1

SHIM,1.28mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806242C1

SHIM,1.30mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806243C1

SHIM,1.34mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806244C1

SHIM,1.38mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806245C1

SHIM,1.40mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806246C1

SHIM,1.44mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806247C1

SHIM,1.48mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806248C1

SHIM,1.50mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806249C1

SHIM,1.54mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806250C1

SHIM,1.58mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806251C1

SHIM,1.60mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806252C1

SHIM,1.64mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806253C1

SHIM,1.68mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806254C1

SHIM,1.70mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806255C1

SHIM,1.74mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806256C1

SHIM,1.78mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806257C1

SHIM,1.80mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806258C1

SHIM,1.84mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806259C1

SHIM,1.88mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806260C1

SHIM,1.90mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806261C1

SHIM,1.94mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

10

1806262C1

SHIM,1.98mm Thk

1шт.

NOTE: Use one shim of the thickness required.

1шт.

11

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

SEAL injector nozzle 2.5 mm thick 7 mm injector tip

6шт.

NOTE: Whenever a nozzle is removed from cylinder head, J923261 item 11 seal must be replaced before nozzle is reinstalled in cylinder head.

1шт.
