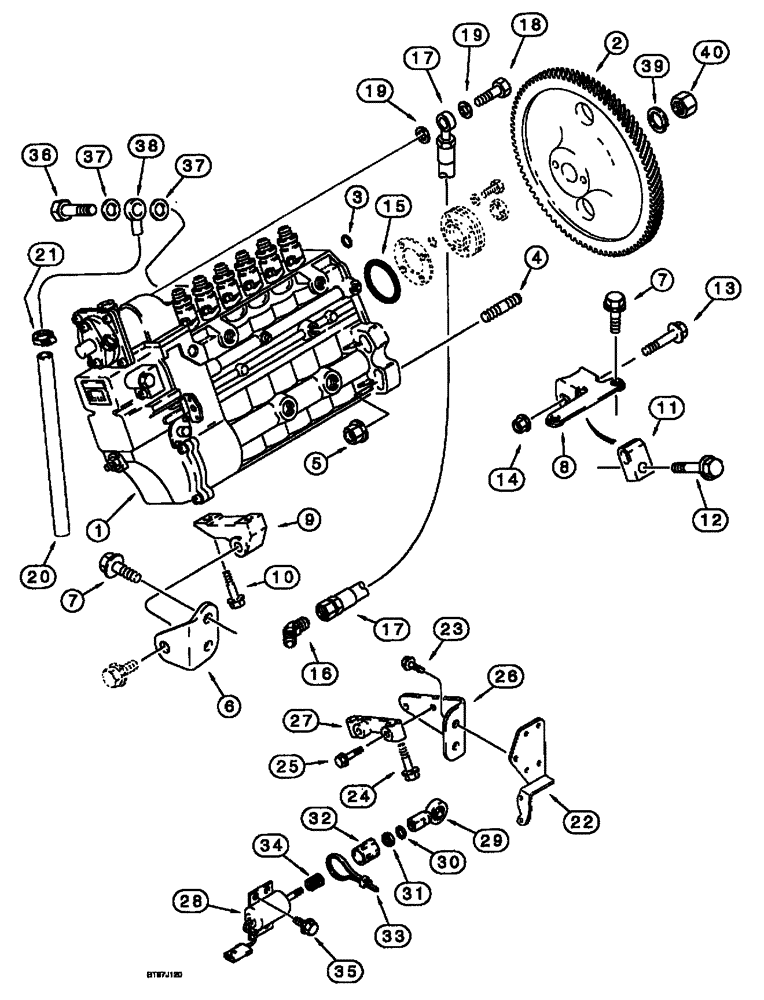

Запчасти Case IH SPX4260 (078) - FUEL INJECTION PUMP AND DRIVE (10) - ENGINE

1

J926776

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel injection, new, component parts not serviced seperately

1шт.

1

JR926776

REMAN-INJECTION PUMP

Assembly - fuel injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC926776

CORE-INJECTION PUMP

Return Number, Injection Pump

1шт.

1

JR926886

REMAN-INJECTION PUMP

Reman for New PN JR926776

1шт.

1

JC926886

CORE-INJECTION PUMP

Return Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

J923578

GEAR

fuel pump

1шт.

3

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

RING - quad, fuel injection pump

1шт.

4

J915036

STUD

pump mounting

4шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

6

J930597

SUPPORT

injection pump

1шт.

Injection pump to cylinder block

1шт.

7

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

Support to block

1шт.

8

J930382

HOLDER

BRACKET - fuel pump

1шт.

9

J926273

SUPPORT

injection pump, lower

1шт.

10

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

2шт.

11

J930383

SUPPORT

bracket to fuel pump

1шт.

12

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

Support to pump

1шт.

13

87015866

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

14

J900589

NUT

hex flange, special, 8 mm

1шт.

15

J924605

SEAL

"D" shaped ring

1шт.

Injection pump to gear housing

1шт.

16

222-1704

ELBOW,45 Degree, 7/16"-24, 45 Degree Fl x 1/4 NPT

1шт.

17

J916779

FUEL HOSE,508.00 mm

1шт.

18

J918002

BANJO BOLT

banjo

1шт.

19

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

special, 10 x 15.5 x 1 mm

2шт.

20

J918176

HOSE,7.90 mm ID x 330.00 mm

1шт.

21

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, adjustable

1шт.

22

J930252

SUPPORT

BRACKET - solenoid mounting

1шт.

23

87015870

BOLT,Hex, M10 x 20mm, Cl 10.9, Full Thd

2шт.

24

87015905

BOLT,Hex, M10 x 25mm, Cl 10.9, Full Thd

2шт.

25

87015867

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

26

J920639

BRACE

fuel pump

2шт.

27

J922672

HOLDER

SUPPORT - fuel pump

1шт.

28

J930235

SOLENOID

fuel shutoff, 12 volt

1шт.

29

A146456

BALL

joint, 1/4 inch NF

1шт.

30

80682

LOCK WASHER,1/4"

1шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

32

J925171

BOOT

protective plunger

1шт.

33

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

34

J924407

SPRING

return plunger

1шт.

35

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

Hex flange, 6 - 1.0 x 12 mm

4шт.

36

J911447

CONNECTOR, ELEC

CONNECTOR banjo fuel return

1шт.

37

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

38

J912886

VALVE

overflow

1шт.
