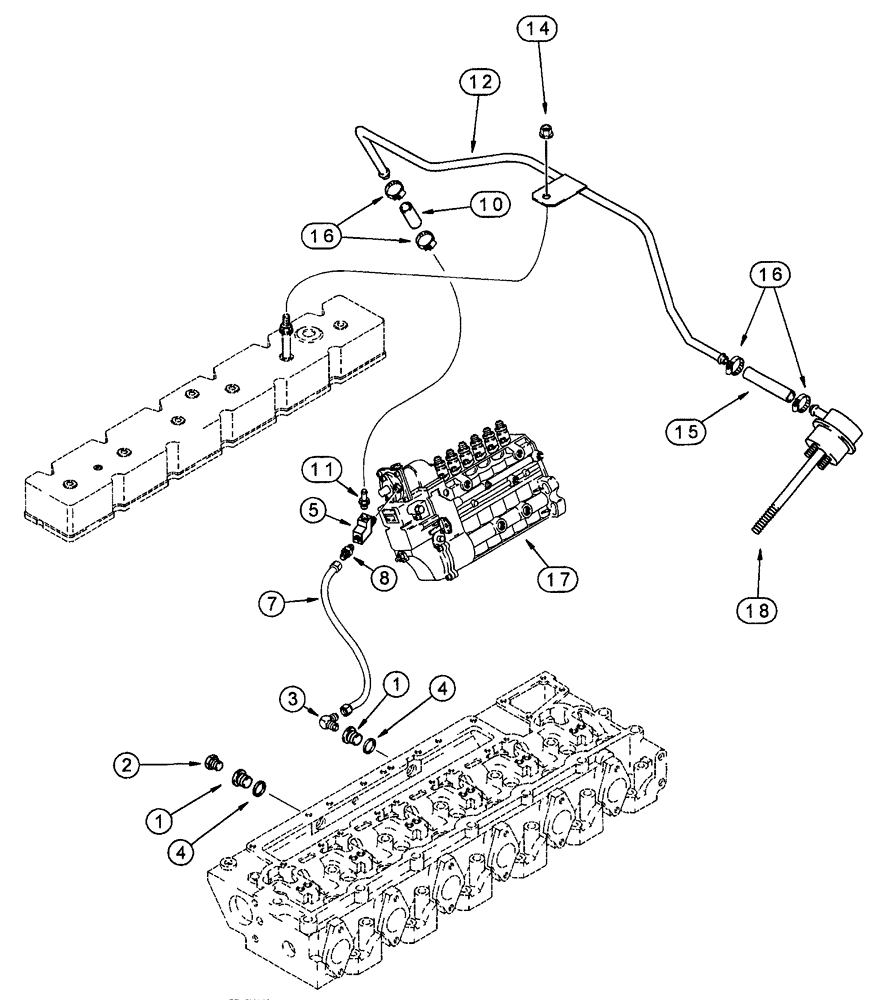

Запчасти Case IH SPX4260 (074) - ANEROID AND WASTEGATE SYSTEM (10) - ENGINE

1

J908110

PLUG

threaded

2шт.

2

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

1шт.

3

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, plug to cylinder head

2шт.

5

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

1шт.

7

J926739

TUBE

aneroid, nylon

1шт.

8

222-21

FITTING,7/16"-24 x 1/8" NPTF

1шт.

10

J920871

HOSE,1294.00 mm

51 MM (2 inch) long

1шт.

11

86624128

FITTING,1/4" Hose x 1/8" NPTF, Barbed

1шт.

12

J929748

TUBE,6.35 mm OD x 577 mm L

wastegate

1шт.

14

J900589

NUT

hex flange, special, 8 mm

1шт.

15

J925438

HOSE,130.00 mm

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

17

J926776

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, componenet parts not serviced seperately

1шт.

18

J531892

ACTUATOR

turbo wastegate, (See Figure 42) for acuator and component parts

1шт.

J531892C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.
