Запчасти Case IH SPX4260 (072) - FUEL INJECTION SYSTEM (10) - ENGINE

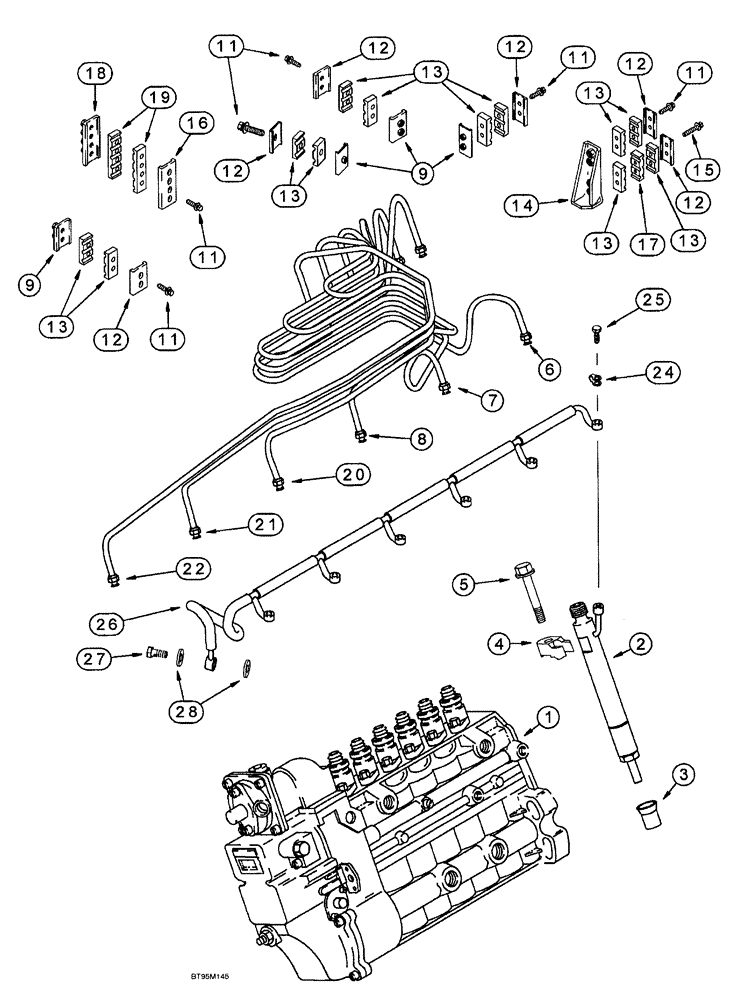

Схема запчастей Case IH SPX4260 - (072) - FUEL INJECTION SYSTEM (10) - ENGINE
11
1
11
12
12
4
12
11
7
22
28
13
25
19
12
27
14
9
13
5
24
17
6
21
16
3
13
8
18
2
13
15
12
13
11
13
12
26
20
11

Артикул

Название

Примечание

Количество

1

J926776

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel injection, new, component parts not serviced seperately, (See Figure 78) for mounting parts

1шт.

2

J926787

INJECTOR ASSY.

fuel, parts list (See Figure 80)

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

J922018

FLANGE BOLT

BOLT - heavy hex flange, 8 - 1.25 X 80 MM, class 12.9

6шт.

6

J929801

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, NO. 1 cylinder

1шт.

7

J929802

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, NO. 2 cylinder

1шт.

8

J929803

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, NO. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

4шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

10шт.

12

J904519

SUPPORT

tube retaining

6шт.

13

J917747

CLAMP

fuel tube

12шт.

14

J917776

BRACE

BRACKET -fuel tube

1шт.

15

J920855

CAPTIVE WASHER SCREW

M5 x 35

2шт.

16

J910686

BRACE

tube retaining

1шт.

17

J917748

CLAMP

fuel tube

1шт.

18

J917740

BRACE

tube retaining

1шт.

19

J917749

CLAMP

tube

2шт.

20

J929804

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, NO. 4 cylinder

1шт.

21

J929805

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, NO. 5 cylinder

1шт.

22

J929806

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

TUBE - fuel injector, NO. 6 cylinder

1шт.

24

J903380

SEAL

Banjo connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

7шт.

26

J920595

TUBE ASSY.

fuel drain

1шт.

27

J924726

BANJO BOLT

check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

WASHER - sealing, banjo fitting

2шт.

Выбрано товаров: 26
