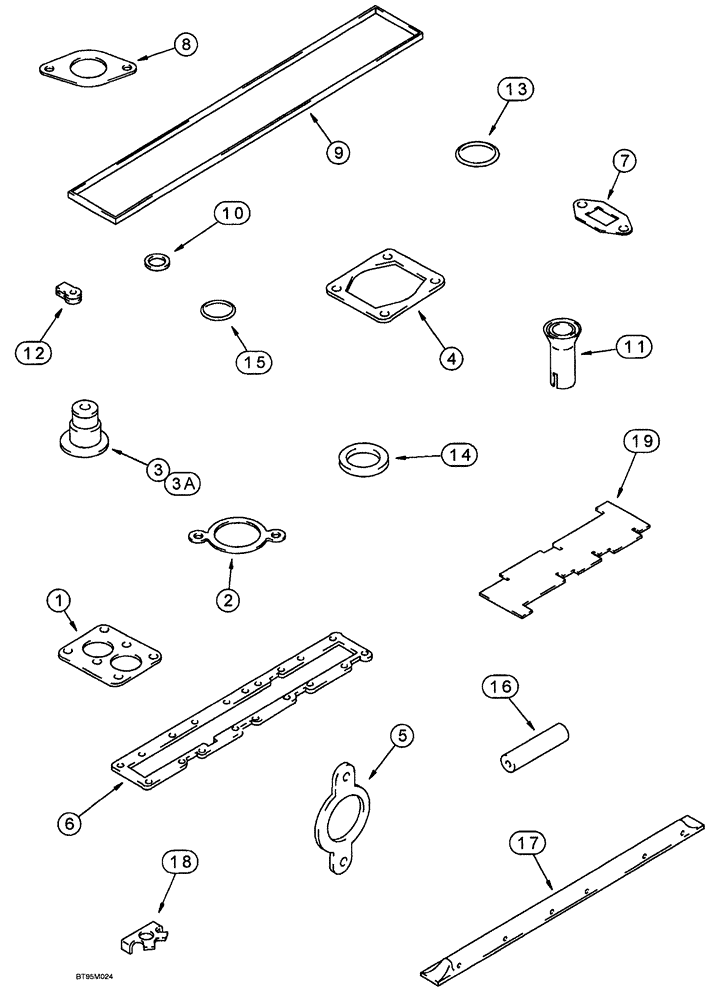

Запчасти Case IH SPX4260 (068) - VALVE GRIND GASKET KIT (10) - ENGINE

0

A78042

KIT

Valve Grind

1шт.

NOTE: When the valve grind gasket kit is used, also order the required cylinder head gasket (See Fig. 048).

1шт.

1

J914310

GASKET,0.8mm Thk

thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

water outlet connection

1шт.

3

J915707

SEAL

intake and exhaust valve stem and guide

6шт.

3a

J927642

SEAL

exhaust valve stem and guide

6шт.

4

J911941

GASKET

mounting turbocharger

1шт.

5

J929012

GASKET,0.5mm Thk

exhaust manifold 0.54 MM thick, set of 6

1шт.

6

J914311

MANIFOLD GASKET

intake manifold cover

1шт.

7

J928919

GASKET

turbo oil drain tube

1шт.

8

J819378

GASKET

turbo oil drain

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

valve cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

12

J903380

SEAL

Banjo connector

7шт.

Connector fuel injection nozzle

1шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

Connector to valve cover

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

SEAL - injector nozzle, 2.5 mm thick, 7 mm injector tip

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

Water filter shutoff valve

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

1шт.

Breather tube to connector

1шт.

17

J919677

TUBE

oil rocker arm

1шт.

18

J914708

LOCKING PLATE

exhaust manifold bolt

12шт.

19

J823921

GAUGE

cylinder head bolt length

1шт.
