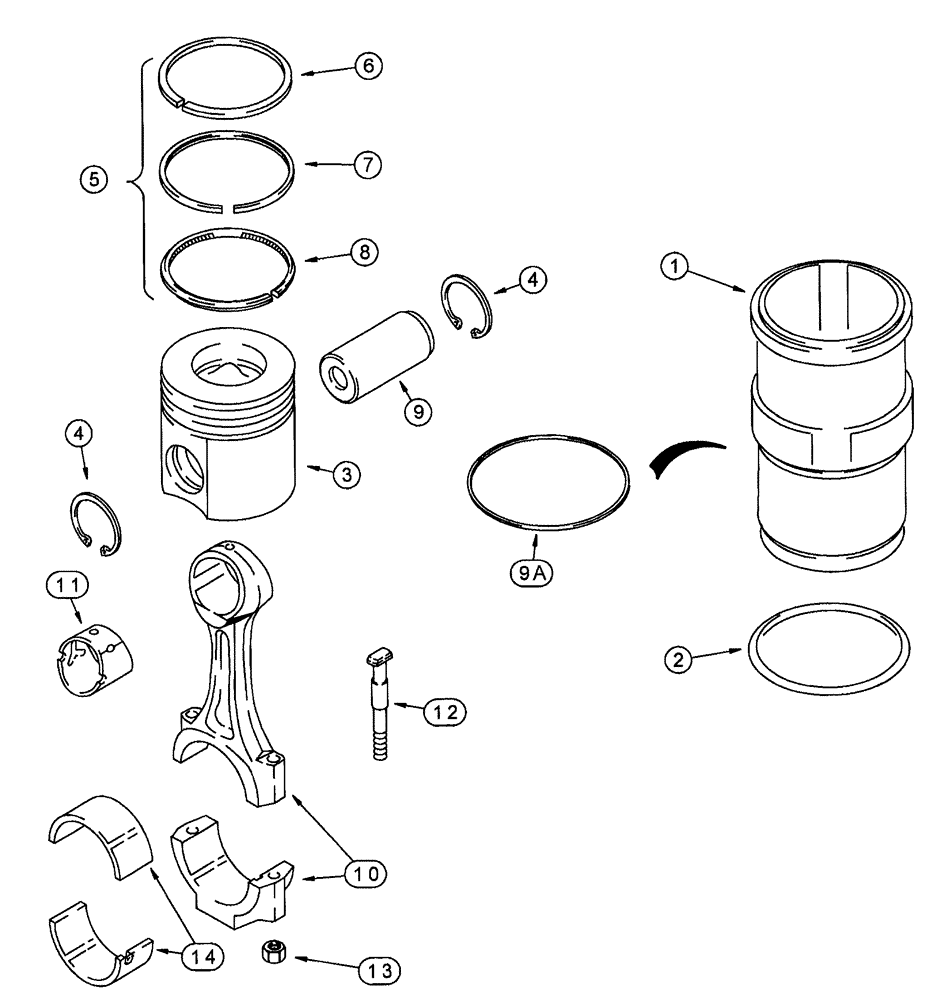

Запчасти Case IH SPX4260 (066) - PISTON AND CONNECTING ROD (10) - ENGINE

0

NS

NOT SERVICED

PISTON

1шт.

1a

A77854

PACKAGE, REPAIR

KIT - piston and sleeve, engine, Serial Range: -45636465

6шт.

1b

A77912

PACKAGE, REPAIR

Kit, Piston and Sleeve, Engine, Start Serial: 45636466

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

piston, Serial Range: -45636465

1шт.

1

J944344

SLEEVE CYLINDER

piston, Start Serial: 45636466

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

cylinder sleeve piston

1шт.

2a

A77853

PISTON & RINGS KIT

Engine, Standard

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON engine

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

A77802

PISTON RING SET

KIT

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

7

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

9

J901597

PIN

piston

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

1шт.

NOTE: Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

1шт.

NOTE: Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

1шт.

NOTE: Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924448

SHIM,0.762mm Thk

1шт.

NOTE: Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924449

SHIM,1.000mm Thk

1шт.

NOTE: Use item 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9b

NS

NOT SERVICED

CONNECTING ROD

1шт.

9c

JR901383

REMAN-CONNECTING ROD

ASSEMBLY - connecting, remanufactured, North America Only, component parts shown on this figure do not apply to the remanufactured assembly

6шт.

9d

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

9e

J901383

CONNECTING ROD

ASSEMBLY

6шт.

84487529R

REMAN-CONNECTING ROD

SPX4260 (4/99 - 11/01), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting, two-piece

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

connecting rod

1шт.

12

J928870

ROD

connecting rod

2шт.

13

J901381

SPECIAL NUT

hex rod bolt

2шт.

14

87443389

BEARING LINER

Kit - Upper And Lower, Standard

6шт.

14

87443529

BEARING LINER

Kit - Upper And Lower, 0.25 mm Undersize

6шт.

14

A77565

BEARING SET

Kit - Connecting Rod, 0.50 mm Undersize

6шт.

14

84156221

BEARING SET

Kit - Upper and Lower, 0.75 mm Undersize

6шт.

14

87443534

BEARING LINER

Kit - Connector Rod, 1.00 mm Undersize

6шт.
