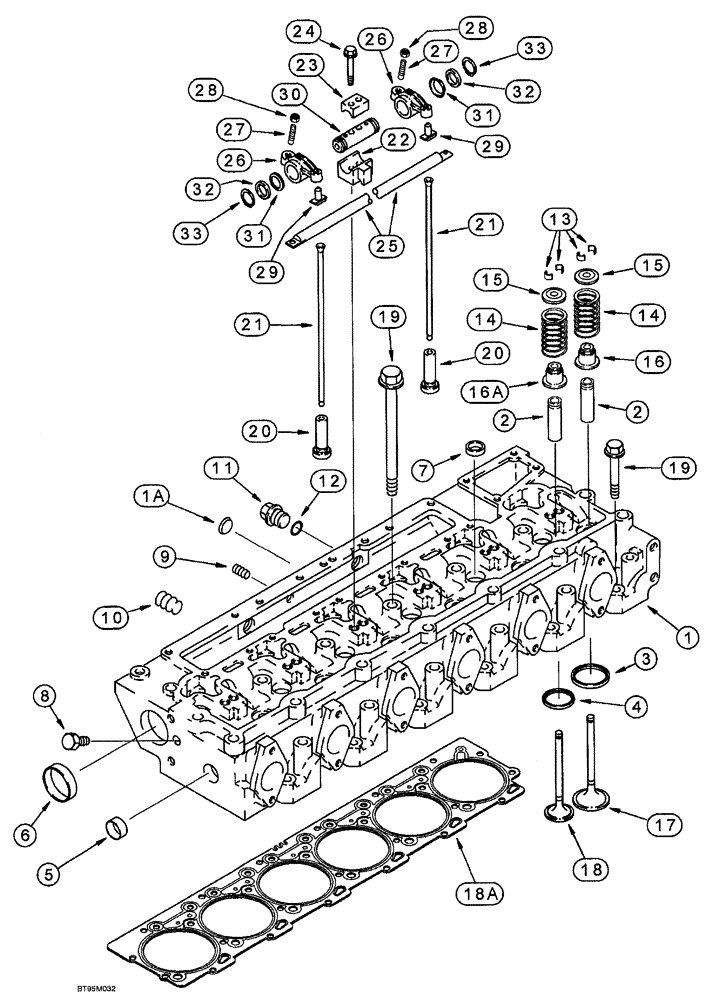

Запчасти Case IH SPX4260 (052) - CYLINDER HEAD AND VALVE MECHANISM (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1b
JR925642
HEAD
ASSEMBLY- cylinder, with valves, remanufactured, North America Only, component parts shown on this figure do not apply to the remanufactured assembly
1шт.
1c
JC916464
HEAD
RETURN NUMBER - use this part number to return head, with valves, for credit when using a remanufactured assembly
1шт.
1d
J925642
HEAD (CYLINDER)
ASSEMBLY - new with valves
1шт.
84262945R
REMAN-CYLINDER HEAD
SPX4260 (4/99-11/01), Reman For New P/N J925642
1шт.
84262945C
CORE-CYLINDER HEAD
Return Number
1шт.
1
J920031
HEAD (CYLINDER)
ASSEMBLY - new without valves
1шт.
84262945R
REMAN-CYLINDER HEAD
SPX4260 (4/99-11/01), Reman For New P/N J920031
1шт.
84262945C
CORE-CYLINDER HEAD
Return Number
1шт.
1a
J912900
PLUG
expansion 24 mm
1шт.
3
J924582
INSERT
valve seat, intake
6шт.
3
J925468
SEAT, VALVE
INSERT - intake, 0.254, oversize, service repair only
6шт.
NOTE: The oversize valve is not part of the head assembly and must be ordered separately.
1шт.
3
J925470
SEAT, VALVE
INSERT - intake, 0.508 mm oversize, service repair only
6шт.
NOTE: The oversize valve is not part of the head assembly and must be ordered separately.
1шт.
4
J929005
INSERT
seat exhaust valve
6шт.
4
J929006
INSERT
seat, exhaust valve, 0.254 mm oversize, service repair only
6шт.
NOTE: The oversize valve is not part of the head assembly and must be ordered separately.
1шт.
4
J929007
INSERT
seat, exhaust valve, 0.508 mm oversize, service repair only
6шт.
NOTE: The oversize valve is not part of the head assembly and must be ordered separately.
1шт.
6
A77782
PLUG
Expansion, 58 mm od
2шт.
7
86625124
PLUG,Cup, 1", Stainless
5шт.
8
217-426
PLUG,Hex Soc, 1/16" - 27 NPTF
1шт.
9
9617020
PLUG,1/4" - 18 x 0.48"
1шт.
10
444704
PLUG,Hex Soc, 1/2"-14
2шт.
11
J924148
PLUG,M22 x 1.5
hex magnetic, special, 22 mm - 1.5
2шт.
12
J902425
SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk
sealing plug
2шт.
13
J901177
VALVE
VALVE keeper
24шт.
14
J906412
VALVE SPRING
12шт.
15
J912976
RETAINER
valve spring
12шт.
16
J915707
SEAL
intake and exhaust valve stem and guide
6шт.
17
J924492
STD INLET VALVE
STD ENGINE INLET VALVE
6шт.
18
J921444
STD EXHAUST VALVE
STD ENGINE EXHAUST VALVE
6шт.
18a
NS
NOT SERVICED
GASKET - cylinder head, standard (See Figure 48)
1шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
22
J905870
SUPPORT
shaft rocker arm
6шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
23
J901693
CLAMP
retaining shaft
6шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
24
868-10065
12 PT SCREW,M10 x 65mm, Cl 12.9
12шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
25
J919677
TUBE
oil rocker arm
1шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
26
J901717
ROCKER
ARM ASSEMBLY
12шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
27
J937438
ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point
1шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
28
86509310
NUT,3/8" - 24, Gr 5
1шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
29
NSS
NOT SOLD SEPARAT
INSERT - rocker
1шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
30
J919435
SHAFT
rocker
6шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
31
J906100
SPRING CUP
WASHER
12шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
32
J907206
WASHER,22.5mm ID x 30mm OD x 1mm Thk
flat special
12шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
33
100-1187
SNAP RING,#87, Ext
12шт.
Part available only through Case's North American Parts Organization (NAPO).
1шт.
Выбрано товаров: 66
