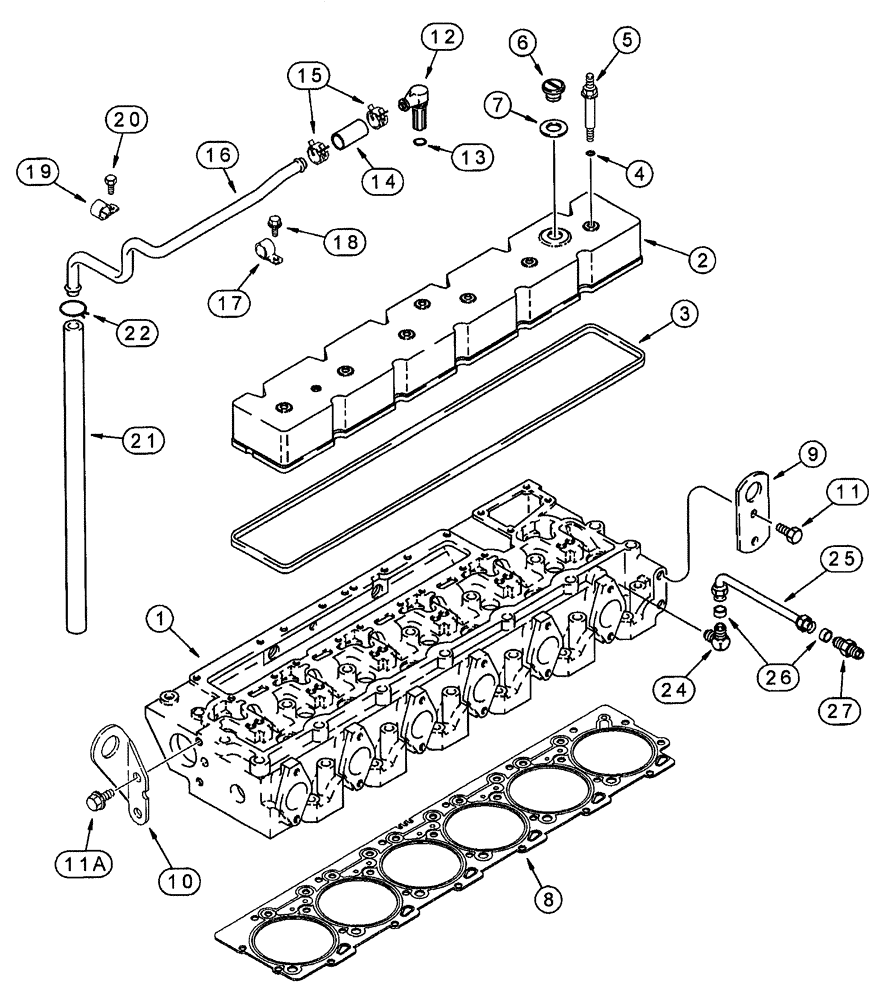

Запчасти Case IH SPX4260 (048) - CYLINDER HEAD COVER (10) - ENGINE

1

HEAD - cylinder

1шт.

See Fig. 052

1шт.

2

J927907

VALVE COVER

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

5

J922639

STUD

valve cover

6шт.

Wastegate actuator mounting

1шт.

6

J902468

FILLER CAP,Male

CAP -oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

cap

1шт.

8

J928168

GASKET

cylinder head standard

1шт.

8

J928180

GASKET

cylinder head, 0.25 mm thicker

1шт.

8

J928181

GASKET

cylinder head, 0.50 mm thicker

1шт.

9

J907861

LIFTING EYE

front

1шт.

10

J906440

LIFTING EYE

rear

1шт.

11

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

11a

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

12

J920497

ELBOW

CONNECTOR - 90°, breather vent

1шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

J918610

HOSE,19.05 mm ID x 51.00 mm

To Connector

1шт.

15

J918163

CLIP

CLAMP - spring type

2шт.

16

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

breather

1шт.

17

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

1шт.

18

J912072

SELF-TAP SCREW

hex wash head, special, 8 - 1.25 x 15 mm

1шт.

19

A77538

CLIP

CLAMP - P-style, tube retaining

1шт.

20

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

1шт.

21

J918616

TUBE,680.00 mm

Tube End

1шт.

22

86637700

HOSE CLAMP,#18, 1 1/8", Spring

1шт.

24

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1шт.

25

J924589

TUBE,6.35 mm OD x 112.6 mm L

vent air

1шт.

26

87017025

SLEEVE,5.33mm ID x 10.72mm OD x 5.41mm L

2шт.

27

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

1шт.
