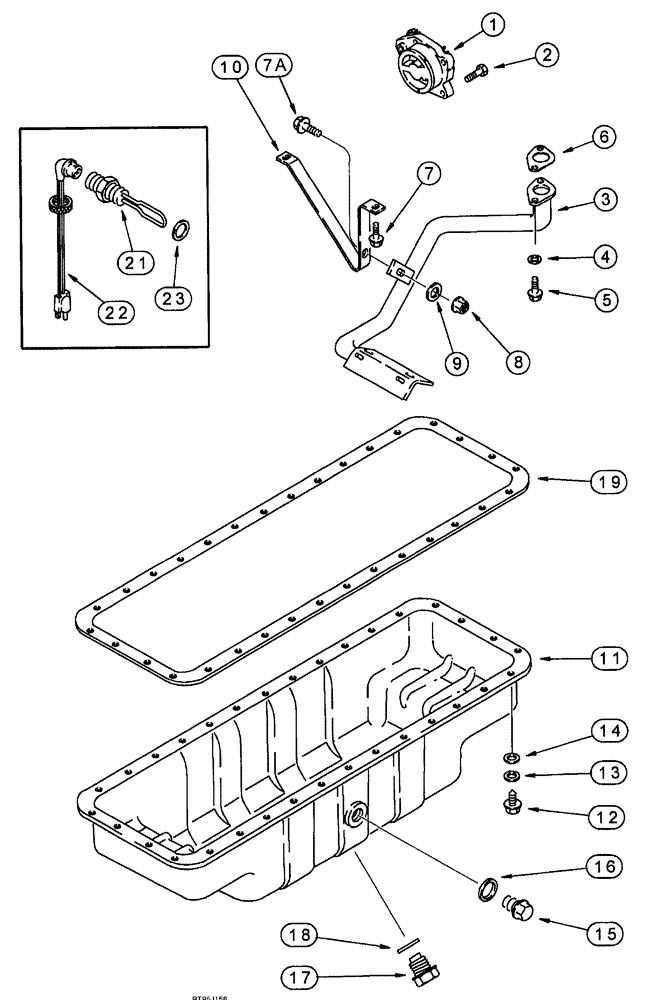

Запчасти Case IH SPX4260 (046) - OIL PUMP, PAN AND HEATER (10) - ENGINE

1

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP ASSEMBLY- oil, remanufactured, North America Only, 24 teeth drive gear, for service order J930338 item 1 pump assembly

1шт.

1

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J930338

PUMP, ENGINE OIL

ASSEMBLY - oil, 24 teeth drive gear

1шт.

2

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

3

J921719

TUBE

with screen, oil suction

1шт.

4

J908738

SPACER

mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

J914302

GASKET

mounting, oil suction tube

1шт.

Includes kit part number A77679 shown below

1шт.

7

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

2шт.

7a

87015862

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

8

J906216

FLANGE NUT

hex flange, special, 6 mm - 1.0

1шт.

9

J910960

WASHER

flat special

1шт.

10

J927611

BRACKET

suction tube

1шт.

11

J914015

ENGINE OIL PAN

oil engine

1шт.

12

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

32шт.

13

J910266

LOCK WASHER

spring, belleville

32шт.

14

J908316

WASHER

flat special, 9 x 16 x 1 mm

32шт.

15

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 1.5, heater hole

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing plug

1шт.

Includes kit part number A77679 shown below

1шт.

17

J924147

PLUG,M18 x 1.5

hex magnetic, special, 12 mm - 1.5, drain

1шт.

18

J920773

SEALING WASHER

drain plug

1шт.

Includes kit part number A77679 shown below

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

Includes kit part number A77679 shown below

1шт.

19a

A77679

GASKET KIT

Oil Pan

1шт.

Includes Refs. 6, 16, 18, and 19

1шт.

19b

OIL PAN HEATER KIT

1шт.

19c

A77580

SERVICE KIT

Oil Pan Heater, Engine Oil

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt, oil pan kit

1шт.

22

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, oil pan heater kit

1шт.

NOTE: When engine oil heater kit is ordered, item 23, J902425 washer must be ordered.

1шт.
