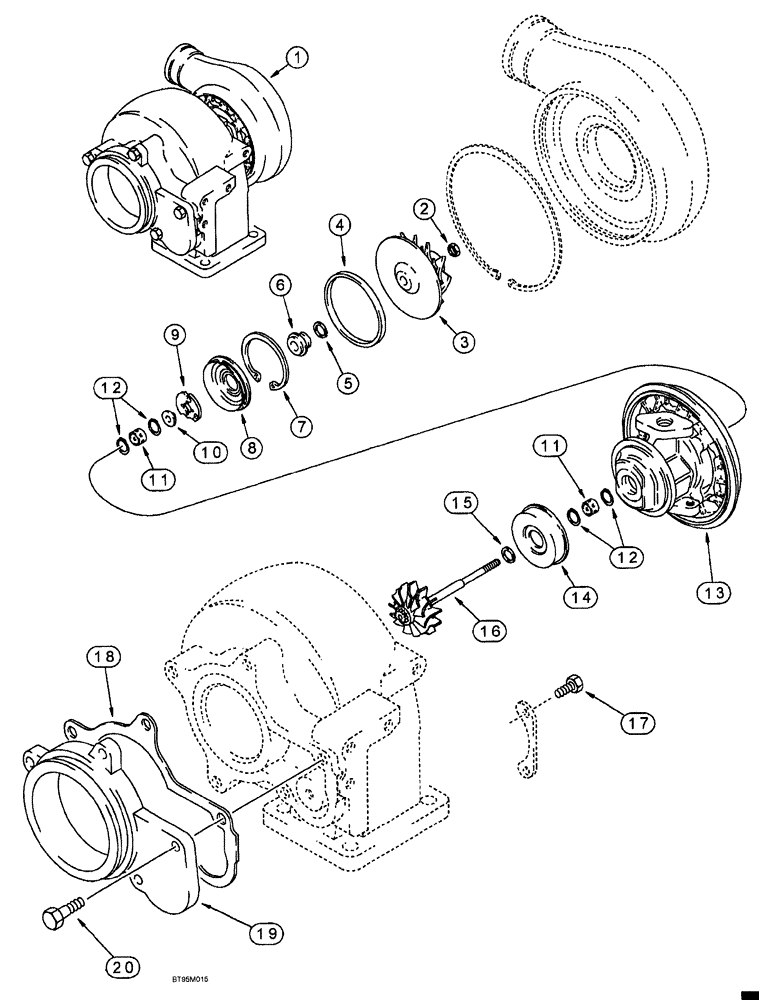

Запчасти Case IH SPX4260 (040) - TURBOCHARGER ASSEMBLY (10) - ENGINE

1

J536305

TURBOCHARGER

engine, new, HX40W

1шт.

1

JR536305

REMAN-TURBOCHARGER

Assembly - Engine, Remanufactured, Component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC536305

CORE-TURBOCHARGER

Return Part Number - use this part number to return Turbocharger Core for credit when using a remanufactured assembly

1шт.

1

J536309

TURBOCHARGER

engine, new, HX40

1шт.

1

JR536309

REMAN-TURBOCHARGER

Remanufactured Turbocharger - HX40W

1шт.

1

JC536309

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

NUT -lock

1шт.

Includes kit part number J575169 shown below

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER -turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - o-ring

1шт.

Includes kit part number J575169 shown below

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Includes kit part number J575169 shown below

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER-oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Includes kit part number J575169 shown below

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Includes kit part number J575169 shown below

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turbocharger thrust

1шт.

Includes kit part number J575169 shown below

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turbocharger

2шт.

Includes kit part number J575169 shown below

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

Includes kit part number J575169 shown below

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing turbine

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - turbine heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Includes kit part number J575169 shown below

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT - turbocharger

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - set hex head

6шт.

Includes kit part number J575169 shown below

1шт.

18

J535243

GASKET,0.25mm Thk

ADAPTER

1шт.

19

J533030

ADAPTER

CONNECTION

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

20a

J535324

CARTRIDGE

CENTER ASSEMBLY - turbo includes items 2 thru16

1шт.

20b

J575169

REPAIR KIT

KIT - OVERHAUL, TURBOCHARGER, Includes items 2, 4, 5, 7, 8, 9, 11, 12, 15, and 17

1шт.
