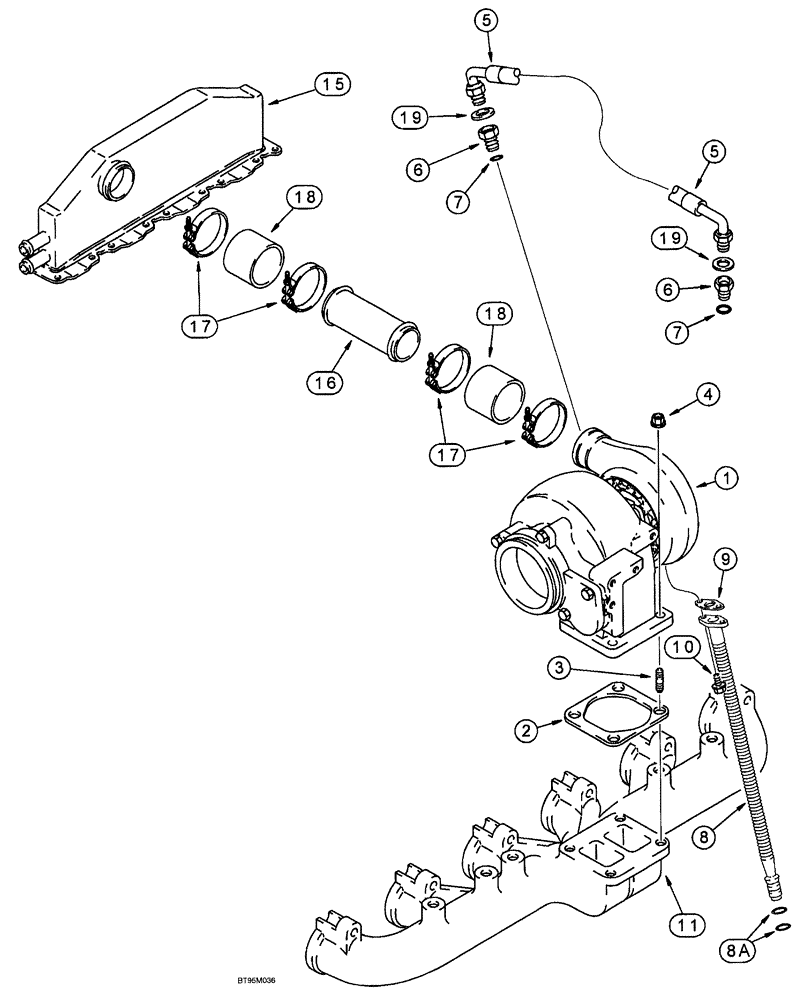

Запчасти Case IH SPX4260 (038) - TURBOCHARGER SYSTEM (10) - ENGINE

1

TURBOCHARGER ASSEMBLY - ENGINE (See Figure 40)

1шт.

2

J911941

GASKET

turbocharger mounting

1шт.

3

J818823

STUD

turbocharger mounting

4шт.

4

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5

4шт.

5

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply

1шт.

6

J919687

HYD CONNECTOR

ADAPTER - female hex, special

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

8

J928629

TUBE

oil drain

1шт.

8a

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

9

J819378

GASKET

turbo oil drain

1шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

J929779

MANIFOLD

exhaust

1шт.

15

J924732

AFTERCOOLER

INTAKE air

1шт.

16

J914943

TUBE,63.5 mm OD x 140 mm L

crossover air

1шт.

17

J924386

COLLAR CLAMP

adjustable special

4шт.

18

J916437

HOSE

Crossover Tube

2шт.

19

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

2шт.
