(284) - FENDER GROUP - RH, LH

Запчасти Case IH SPX4260 (284) - FENDER GROUP - RH, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

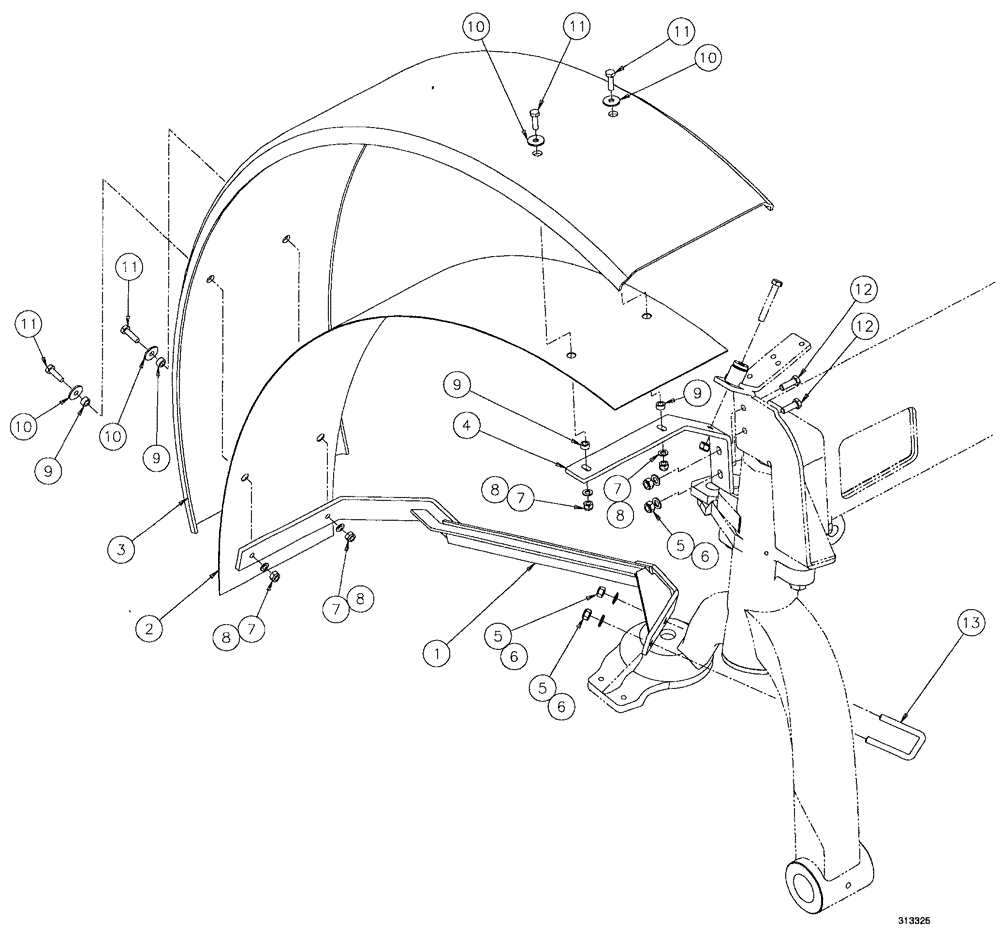

Схема запчастей Case IH SPX4260 - (284) - FENDER GROUP - RH, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
10
8
7
8
6
8
5
6
5
11
4
2
5
9
9
11
12
6
9
10
10
8
10
11
7
12
3
7
9
1
7
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN310789

MOUNTING PARTS

rear, fender (RH)

1шт.

~

BN313252

MOUNTING PARTS

rear, fender

1шт.

Indicates same general part but opposite side

1шт.

2

BN313445

PLATE

inner fender brace

1шт.

3

BN310797

FENDER

1шт.

4

BN311623

BRACKET

fender support

1шт.

5

BN313561

LOCK NUT

M12-1.75, NLN, SS

4шт.

6

BN300508

WASHER

4шт.

7

BN304419

NUT

M10-1.5, NLN, 10.9

4шт.

8

BN300507

WASHER

M10, Flat, SS

4шт.

9

BN313446

SPACER

fender bolt

4шт.

10

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406 x 1.125 x 0.134 HTS DOR HDN

4шт.

11

BN300472

BOLT

M10-1.5 x 35, HH, SS

4шт.

12

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

342095A1

U-BOLT

BOLT "U" M12 x 3.57 x 2.56

1шт.
