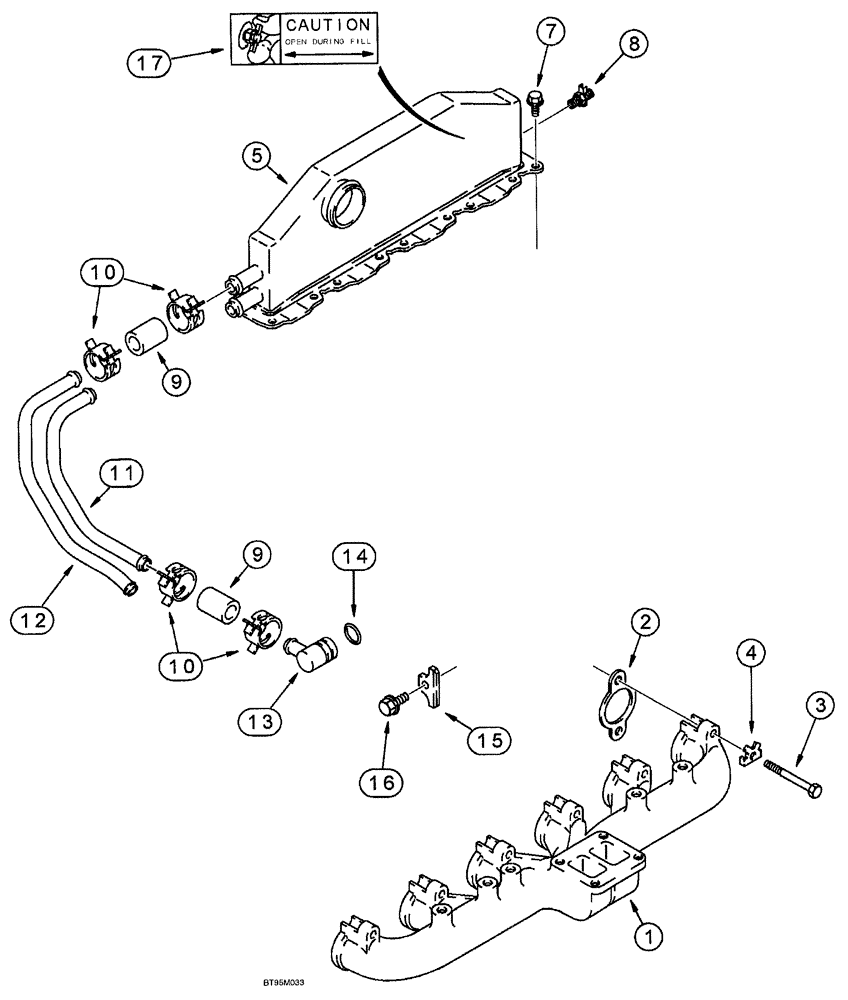

Запчасти Case IH SPX4260 (036) - MANIFOLDS (10) - ENGINE

1a

NS

NOT SERVICED

EXHAUST

1шт.

1

J929779

MANIFOLD

exhaust

1шт.

2

J929012

GASKET,0.5mm Thk

exhaust manifold, 0.54 mm thick

6шт.

3

J929537

BOLT

M10 x 70 SS

12шт.

4

J914708

LOCKING PLATE

manifold bolt

12шт.

5a

NS

NOT SERVICED

INTAKE AFTERCOOLER

1шт.

5

J924732

AFTERCOOLER

INTAKE air

1шт.

6

J823494

SEALANT

three bond silver RTV adhesive 3 oz. tube

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

18шт.

8

J909394

COCK, DRAIN

VALVE - air bleed

1шт.

9

J918611

HOSE,18.50 mm ID x 63.00 mm

Supply Tube to Aftercooler

4шт.

10

J918163

CLIP

CLAMP - spring type, hose retaining

8шт.

11

J906436

TUBE,19.05 mm OD x 385.3 mm L

TUBE - water inlet

1шт.

12

J908402

TUBE,19.05 mm OD

TUBE - water outlet

1шт.

13

J917394

ELBOW

CONNECTOR - water inlet

2шт.

14

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

15

J906439

PLATE

mounting

1шт.

16

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

17

J910778

DECAL

caution, open during fill, Serial Range: connector-block

1шт.
