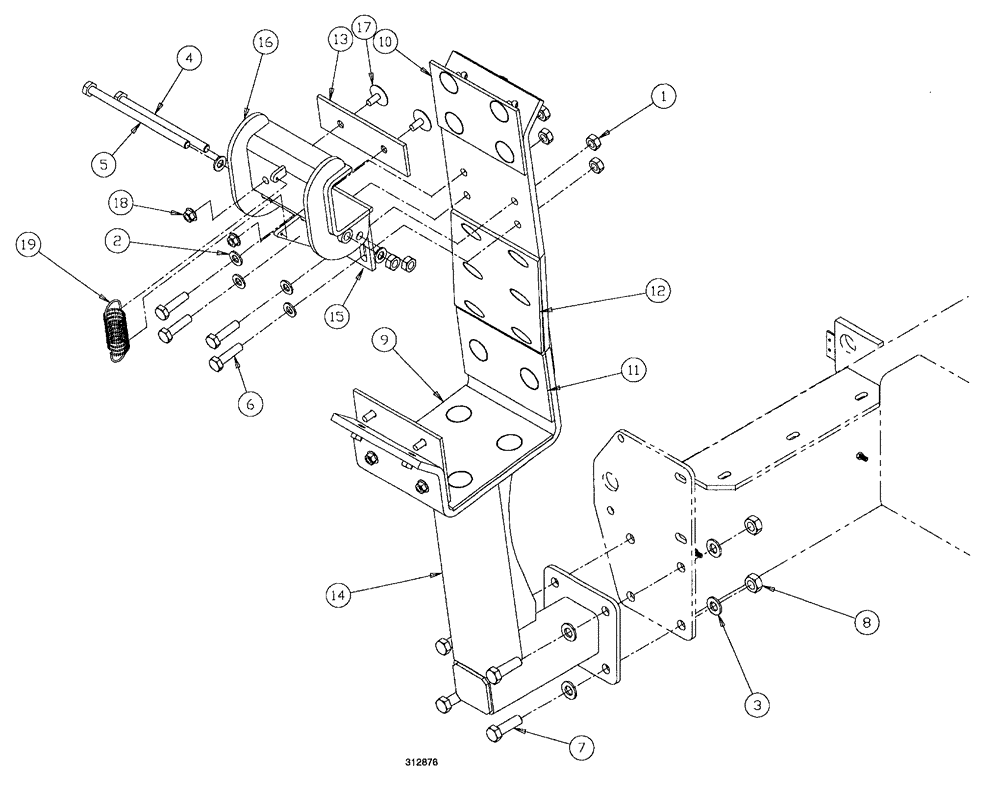

Запчасти Case IH SPX4260 (140) - CRADLE ASSEMBLY LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN304419

NUT

M10-1.5, NLN, 10.9

6шт.

2

BN300499

WASHER,M10, 10.9

6шт.

3

BN300500

WASHER,M12, 10.9

8шт.

4

86639150

BOLT,Hex, M10 x 150mm, Cl 10.9

1шт.

5

BN301063

BOLT,Hex, M10 x 170, 8.8

1шт.

6

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

7

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

8

100038

NUT,M12 x 1.75, Cl 8

4шт.

9

BN310396

PAD

lower boom cradle

1шт.

10

BN310397

PAD

cradle plastic

2шт.

11

BN310900

PAD

lower cradle

1шт.

12

BN310901

PAD

lower cradle

1шт.

13

BN311805

PLATE

liner, cradle lock

1шт.

14

BN317193

SUPPORT

Cradle, LH

1шт.

15

BN311847

CLAMP

cradle, hinge

1шт.

16

86986801

CRADLE

Top Boom

1шт.

17

BN50014

BOLT

5/16"-18 x .75, EH

22шт.

18

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

22шт.

19

BN313580

SPRING

cradle lock

1шт.
