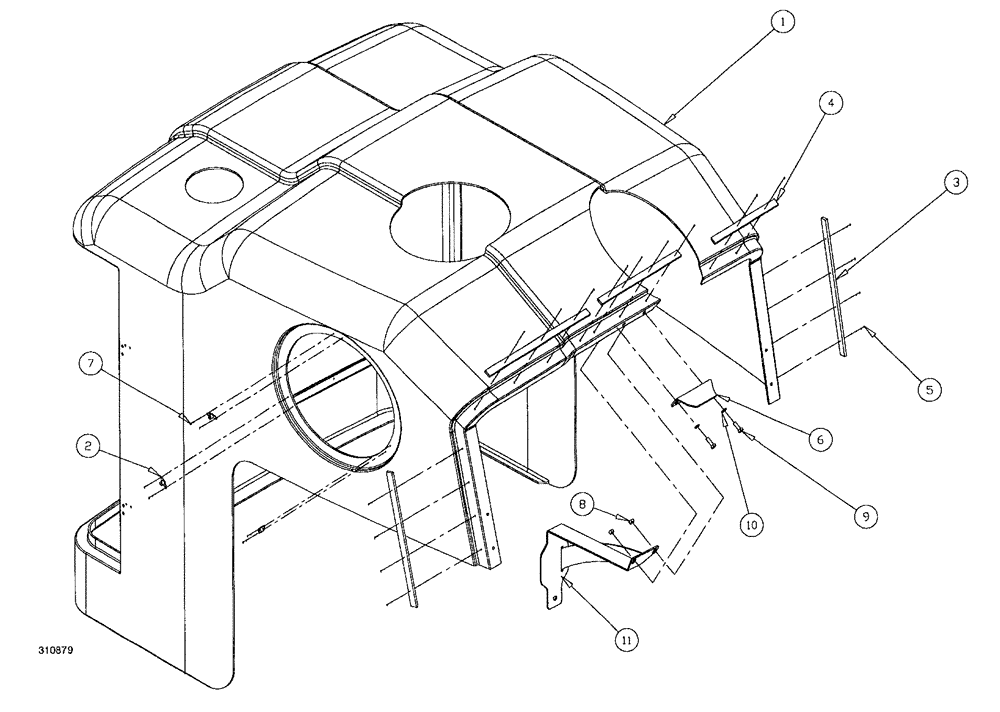

Запчасти Case IH SPX4260 (137) - FRONT HOOD ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN310502

HOOD ASSY.

engine CDC- FRONT

1шт.

2

BN307249

NUT

RECEP.,VIBRA.,1/4TURN

3шт.

3

BN308097

SEAL

HOOD belting

3шт.

4

BN308098

SEAL

HOOD belting

2шт.

5

BN52346

POP RIVET

1/8" x .5 SS

17шт.

6

BN306868

LATCH

CATCH PADDLE

1шт.

7

BN52346

POP RIVET

1/8" x .5 SS

6шт.

8

86528579

NUT,M8 x 1.25

2шт.

9

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

10

BN300497

WASHER,M8, 10.9

2шт.

11

BN313427

SUPPORT

hood

1шт.

ns

BN310882

COVER

AIRCLEANER-ASSY

1шт.

»

BN306471

COVER

air cleaner 778

1шт.

Indicates parts of an assembly

1шт.

»

BN307250

NUT

WINGHEAD, 1/4 TURN, FAST.

3шт.

Indicates parts of an assembly

1шт.

»

BN307251

SPRING

EJECT.,1/4 TURN

3шт.

Indicates parts of an assembly

1шт.

»

BN307252

WASHER

wear,1/4 TURN FAST.

3шт.

Indicates parts of an assembly

1шт.

»

BN307253

WASHER

retain.,1/4 TURN FAS

3шт.

Indicates parts of an assembly

1шт.
