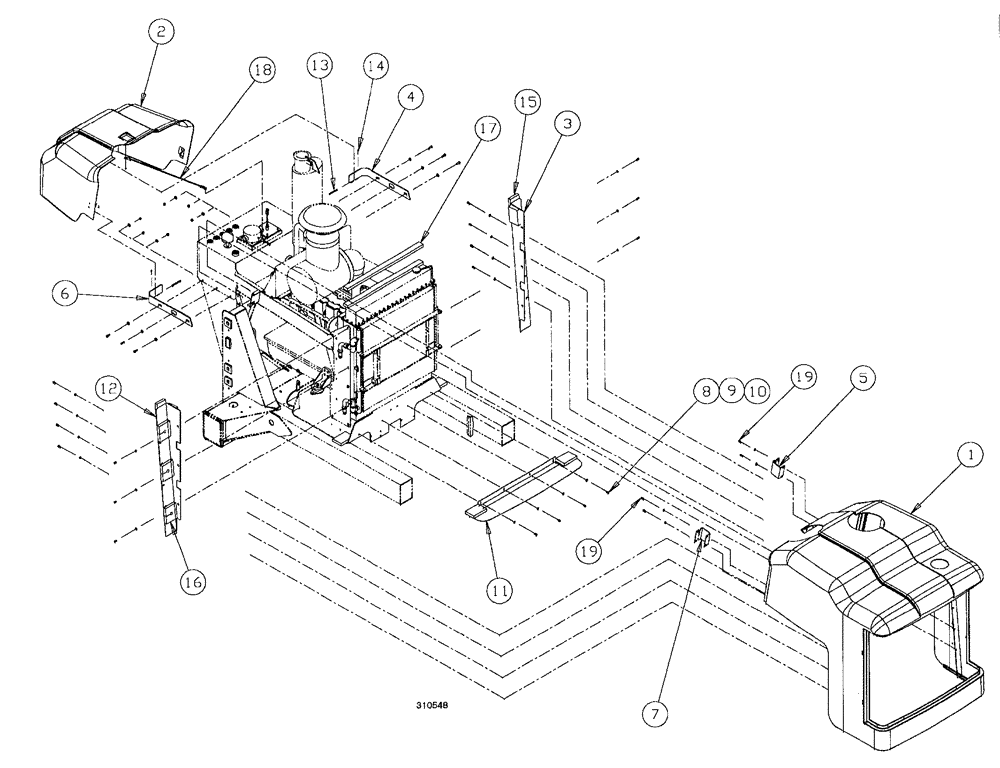

Запчасти Case IH SPX4260 (134) - ENGINE HOOD GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

HOOD ASSY-front CDC (See Figure 137)

1шт.

2

HOOD ASSY-back CDC (See Fifure 136)

1шт.

3

BN313383

ANGLE

hood MT - LH

1шт.

4

BN308026

HINGE

LH

1шт.

5

BN308025

GUIDE

hood LT

1шт.

6

BN306877

HINGE

RH

1шт.

7

BN306867

GUIDE

hood RT

1шт.

8

86528579

NUT,M8 x 1.25

4шт.

9

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

14шт.

10

BN300497

WASHER,M8, 10.9

16шт.

11

BN308094

ANGLE

hood front

1шт.

12

BN308093

ANGLE

hood MT - RH

1шт.

13

BN309498

PIN, SPLIT (COTTER)

PIN, COTTER clevis 3/8X4-1/2

2шт.

14

BN50612

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 x 3/4

2шт.

15

BN312052

SEAL

seal

8шт.

16

BN308096

FOAM

hose

3шт.

17

BN312053

SEAL

seal

2шт.

18

BN311121

CABLE

assembly

1шт.

19

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.
