(122) - REAR STEP / HANDRAIL ASSEMBLY

Запчасти Case IH SPX4260 (122) - REAR STEP / HANDRAIL ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

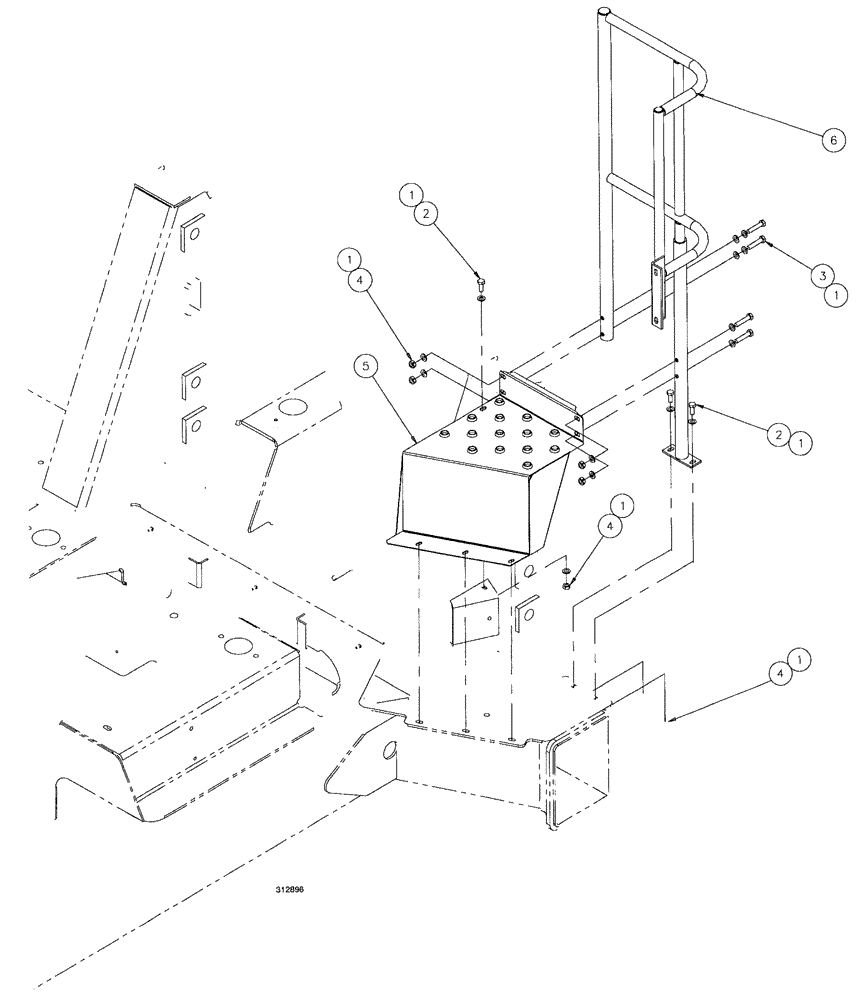

Схема запчастей Case IH SPX4260 - (122) - REAR STEP / HANDRAIL ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
4
2
1
5
4
1
1
1
2
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN300499

WASHER,M10, 10.9

14шт.

2

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

3шт.

3

BN302744

BOLT

M10-1.5 x 50, HH, 10.9

4шт.

4

BN304419

NUT

M10-1.5, NLN, 10.9

7шт.

5

BN312487

STEP

REAR

1шт.

6

BN312609

RAIL

hand rear

1шт.
