(120) - TANK SIDE WALKWAY ASSEMBLY

Запчасти Case IH SPX4260 (120) - TANK SIDE WALKWAY ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

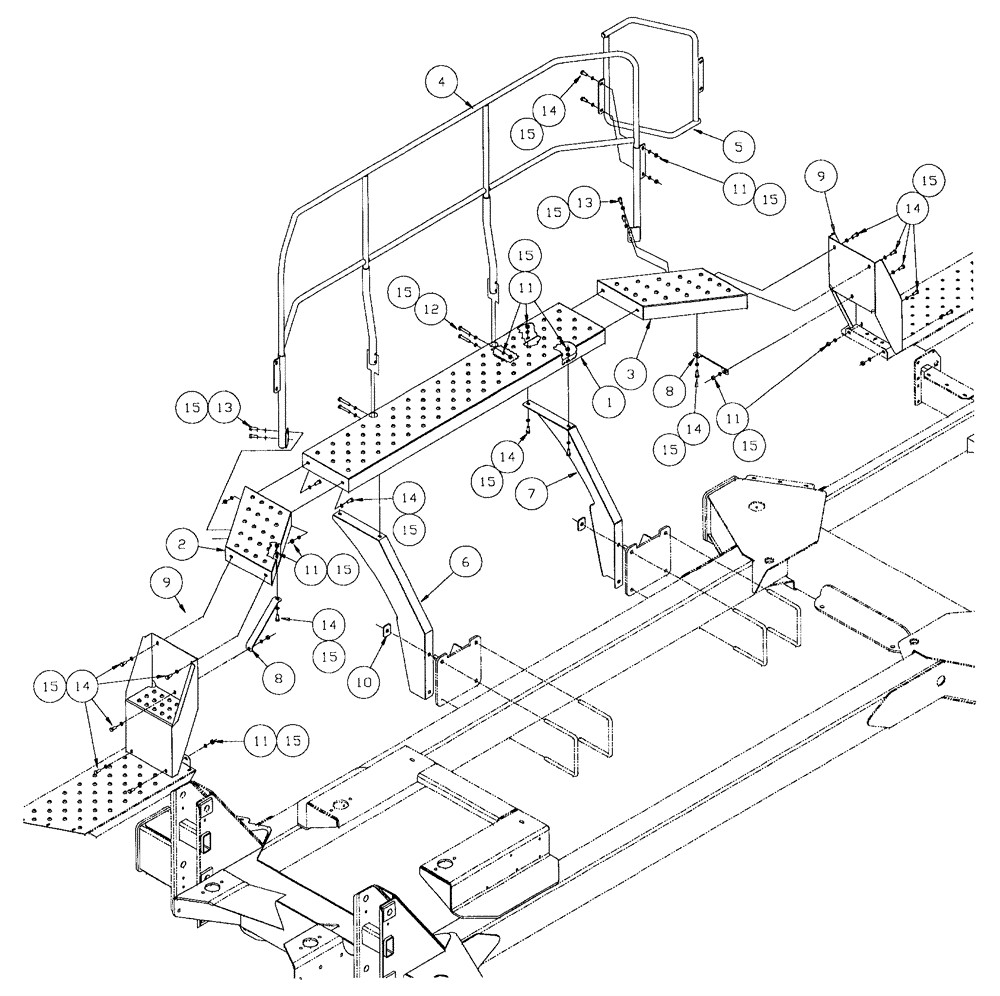

Схема запчастей Case IH SPX4260 - (120) - TANK SIDE WALKWAY ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
14
15
13
2
11
1
11
15
11
15
12
14
10
15
8
15
15
15
15
9
4
13
15
15
15
15
8
14
15
5
11
14
7
6
9
15
14
11
3
15
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN306223

PLATFORM

walkway, center

1шт.

2

BN306224

PLATFORM

walkway RH

1шт.

3

BN306225

PLATFORM

walkway LH

1шт.

4

BN306427

RAIL

center

1шт.

5

BN306716

RAIL

step

1шт.

6

BN306221

SUPPORT

RH

1шт.

7

BN306222

SUPPORT

LH

1шт.

8

BN306558

BRACE

2шт.

9

BN305523

STEP

deck

2шт.

10

BN306400

WASHER

2шт.

11

BN304419

NUT

M10-1.5, NLN, 10.9

30шт.

12

86508619

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

13

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

14

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

22шт.

15

BN300499

WASHER,M10, 10.9

60шт.
