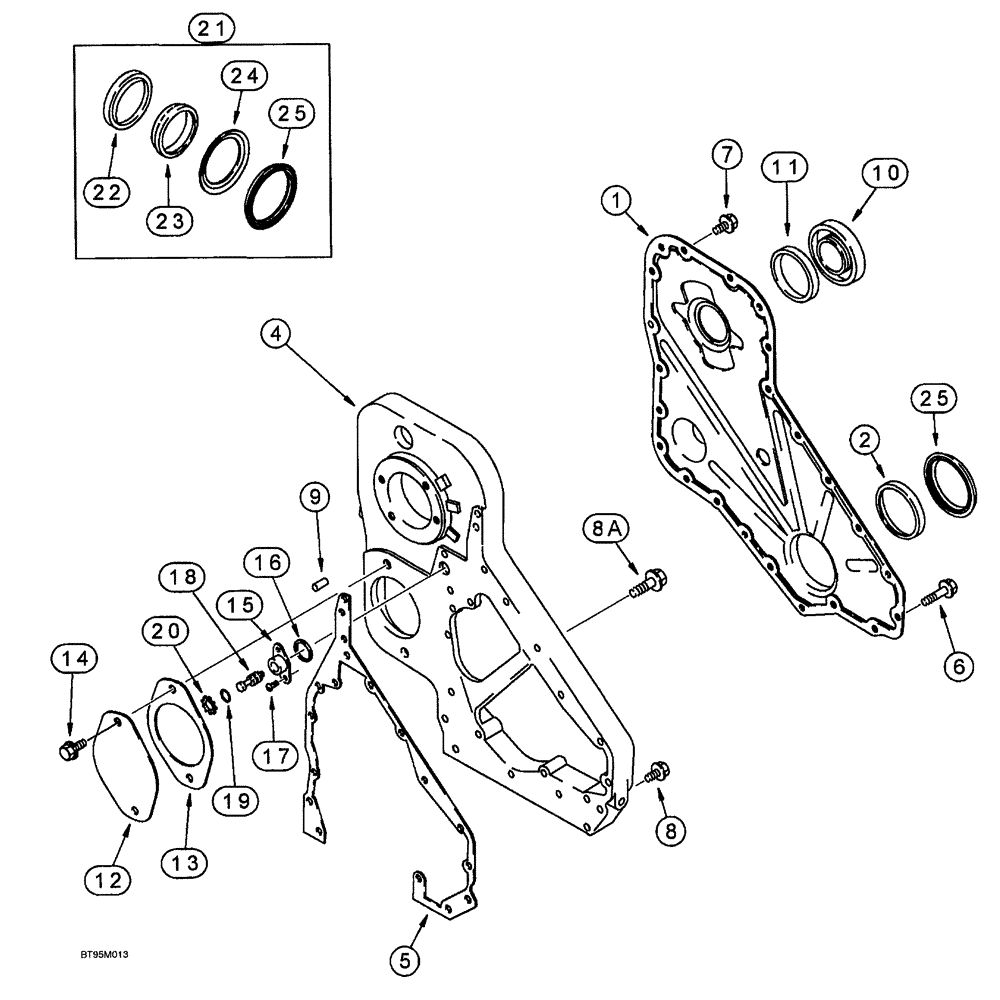

Запчасти Case IH SPX4260 (034) - FRONT GEAR COVER (10) - ENGINE

1

J929446

COVER ASSY

gear, front, high PTO

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, Order Item 21, A77790 KIT below

1шт.

3

J823494

SEALANT

three bond silver RTV adhesive, 3 oz. tube

1шт.

4

J926518

HOUSING

gear high mount

1шт.

5

J929253

GASKET

housing gear

1шт.

6

J926863

FLANGE BOLT

Hex Flange, 8 - 1.25 X 50 MM, Class 10.9

6шт.

7

J924962

FLANGE BOLT

hex flange, special, 8 - 1.25 x 16 mm

17шт.

8

J926846

FLANGE BOLT

Hex Flange, 8 - 1.25 X 20 MM, Class 10.9

5шт.

8a

86642458

BOLT,Hex, M12 x 50mm, Cl 10.9

4шт.

9

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

10

J903463

PLUG,M63 x 5

front access

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

COVER front access

1шт.

12

J914868

COVER

PLATE -access, flat

1шт.

13

J919601

GASKET

COVER PLATE access

1шт.

14

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

15

J919683

HOUSING

PIN, timing

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, Housing, timing pin

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

TIMING

1шт.

19

J913994

O-RING

SEALING

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

1шт.

Timing pin

1шт.

21

A77790

SEAL KIT

Oil, Crankshaft Front

1шт.

22

NSS

NOT SOLD SEPARAT

OIL, seal, front

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust

1шт.
