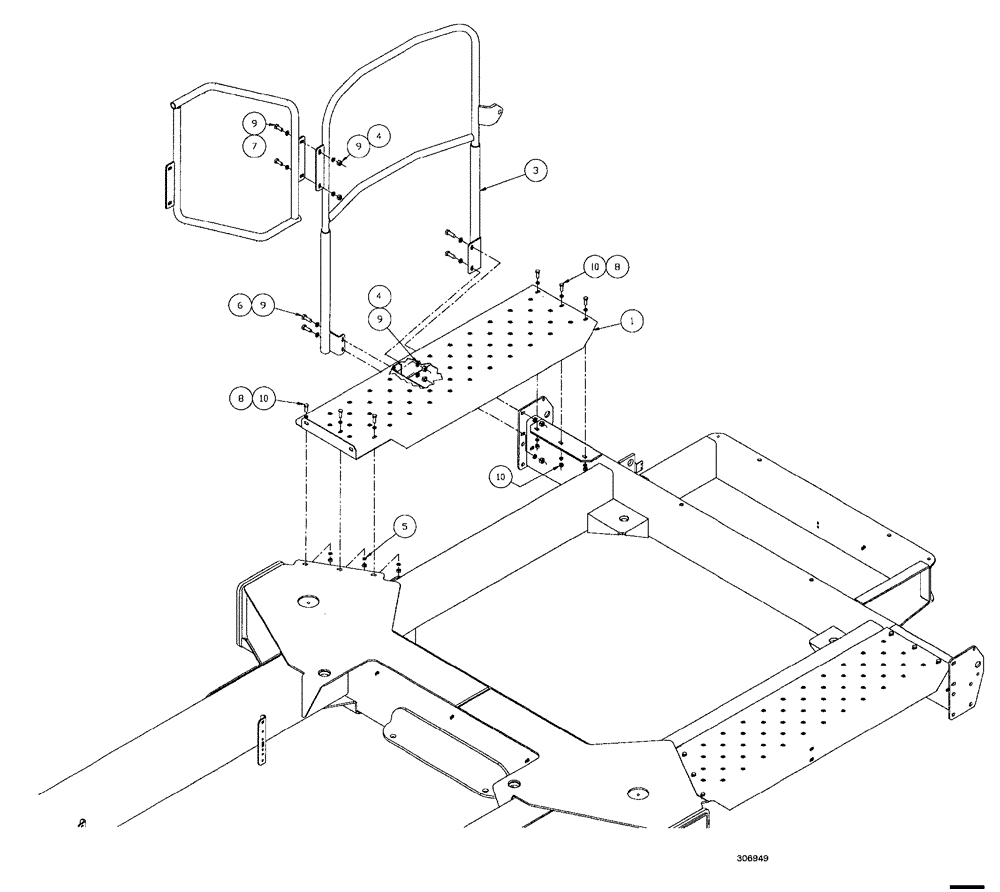

Запчасти Case IH SPX4260 (117) - FRAME / FRONT WALKWAY ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN306719

PLATFORM

walkway front LH

1шт.

2

BN307174

PLATFORM

walkway - RH

1шт.

3

BN306711

RAIL

front

1шт.

4

BN304419

NUT

M10-1.5 ,NLN, 10.9

6шт.

5

86528579

NUT,M8 x 1.25

6шт.

6

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

7

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

2шт.

8

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

9

BN300499

WASHER,M10, 10.9

12шт.

10

BN300497

WASHER,M8, 10.9

12шт.
