(116) - TANK REAR WALKWAY ASSEMBLY

Запчасти Case IH SPX4260 (116) - TANK REAR WALKWAY ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

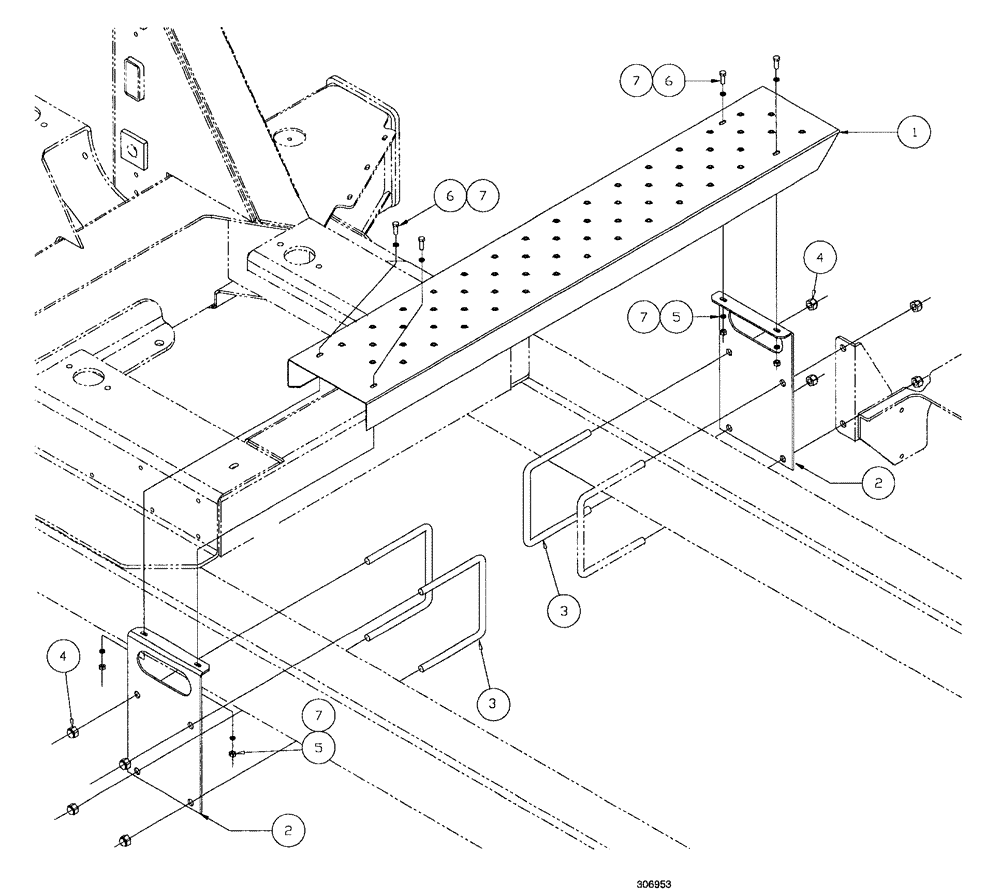

Схема запчастей Case IH SPX4260 - (116) - TANK REAR WALKWAY ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
2
5
7
6
3
7
4
2
3
7
6
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN307179

PLATFORM

walkway rear tank

1шт.

2

BN307181

SUPPORT

2шт.

3

BN312186

U-BOLT

BOLT "U" 16 mm x 8.125 x 8.06

3шт.

4

832-46416

NUT,M16 x 2, Cl 8

6шт.

5

86528579

NUT,M8 x 1.25

4шт.

6

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

7

BN300497

WASHER,M8, 10.9

8шт.
