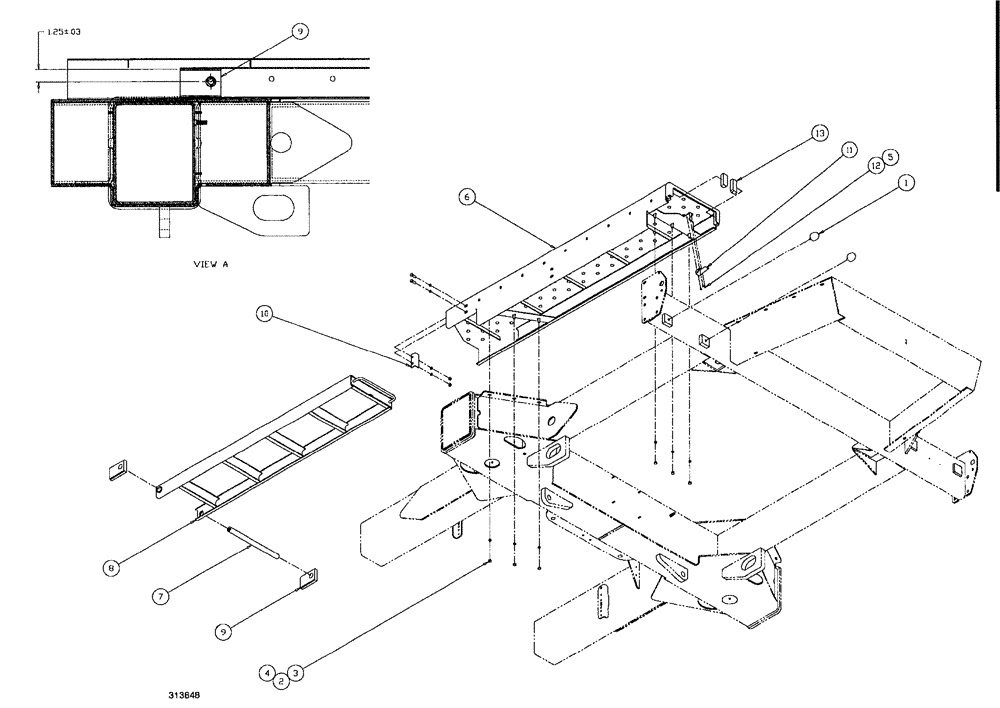

Запчасти Case IH SPX4260 (114) - WALKWAY / LADDER ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN25232

BUMPER

1.56" Dia - Urethane

2шт.

2

BN300497

WASHER,M8, 10.9

16шт.

3

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

4

86528579

NUT,M8 x 1.25

8шт.

5

BN309652

NUT

M4-.7, Hex, SS

3шт.

6

BN313620

LADDER

walkway

1шт.

7

BN313624

HINGE

ladder

1шт.

8

BN313625

LADDER

1шт.

9

BN313626

BLOCK

ladder

2шт.

10

BN313632

STOP

ladder

1шт.

11

BN313641

LATCH

SS DRAW - SOUTHCO

1шт.

12

BN314003

BOLT

M4 x 8 SS

3шт.

13

BN313832

BLOCK

slide, poly

2шт.
