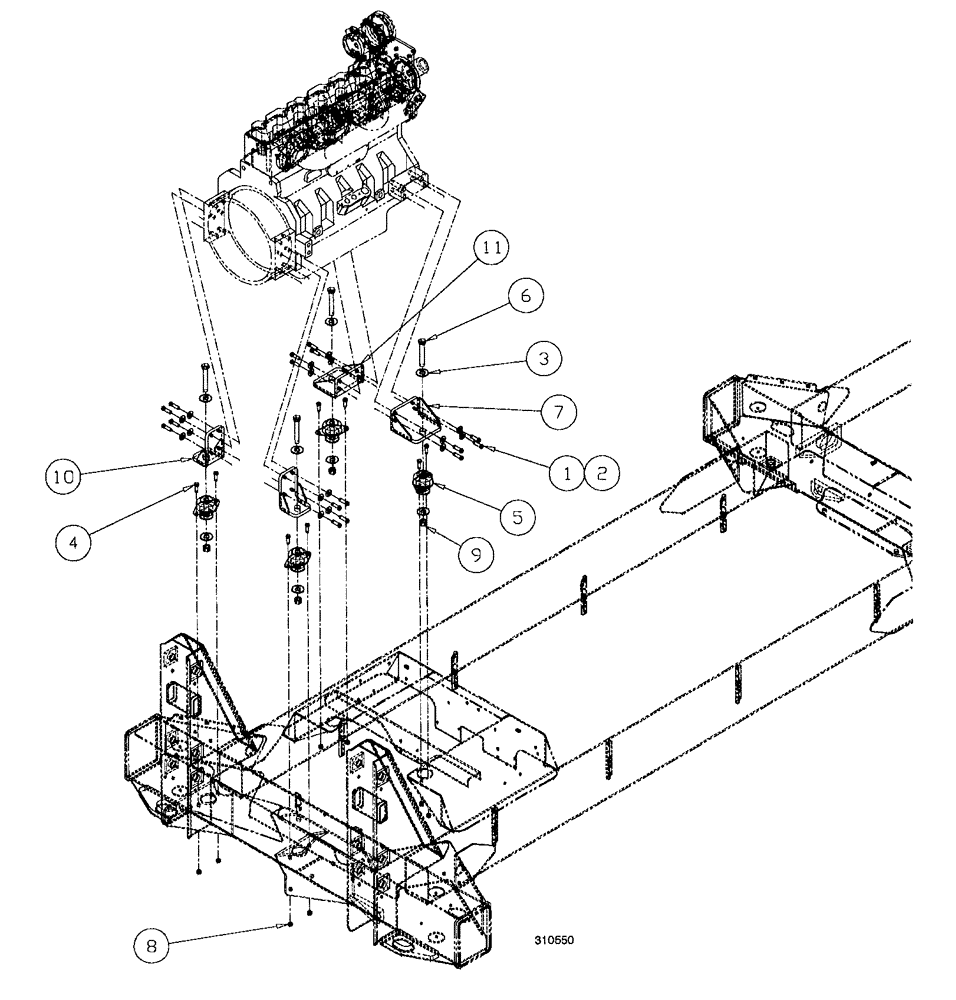

Запчасти Case IH SPX4260 (093) - ENGINE MOUNTING GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN300500

WASHER,M12, 10.9

16шт.

2

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

16шт.

3

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

8шт.

4

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

5

BN304252

MOUNTING PARTS

motor 778

4шт.

6

86639145

BOLT,Hex, M20 x 130mm, Cl 10.9

4шт.

7

BN314340

MOUNTING PARTS

engine, RH

1шт.

8

100038

NUT,M12 x 1.75, Cl 8

8шт.

9

380424

NUT,M20 x 2.5, Cl 8

4шт.

10

BN310109

MOUNTING PARTS

engine

2шт.

11

BN314333

MOUNTING PARTS

engine front LH

1шт.
