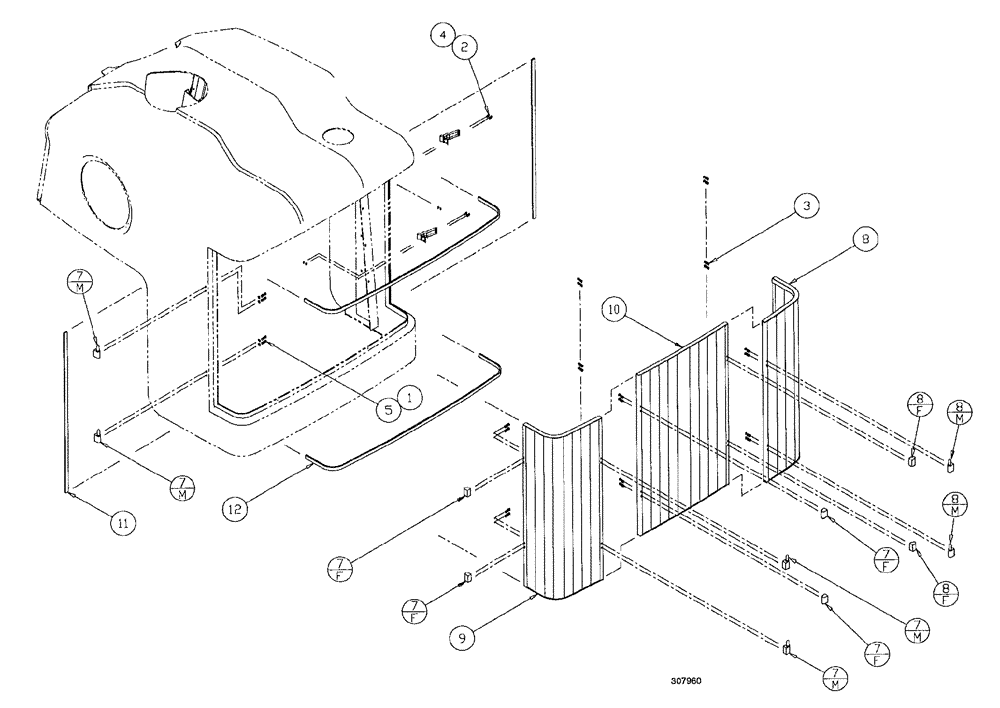

Запчасти Case IH SPX4260 (092) - ENGINE GRILLE ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN300496

WASHER

M6, Flat, 10.9

4шт.

2

87536486

SCREW,M4 x 0.7 x 16.01mm, Cl 12.9

Hex, M4 x 12, 8.8, Full Thd

4шт.

3

87317695

BOLT,Hex, M6 x 30mm, Cl 10.9, Full Thd

20шт.

4

385681

NUT,M4 x 0.7, Cl 8

4шт.

5

BN306285

BOLT

M6- 1 x 16, AH, 10.9

4шт.

6

BN306286

HINGE

nylon, type B, M6

2шт.

7

BN306290

HINGE

nylon, type A, M6

4шт.

8

BN306857

GRILLE

left

1шт.

9

BN306859

GRILLE

right

1шт.

10

BN306860

GRILLE

center

1шт.

11

BN310254

STRIP

foam .25 x .38 x 38.25

2шт.

12

BN310255

STRIP

foam .25 x .38 x 59.75

2шт.
