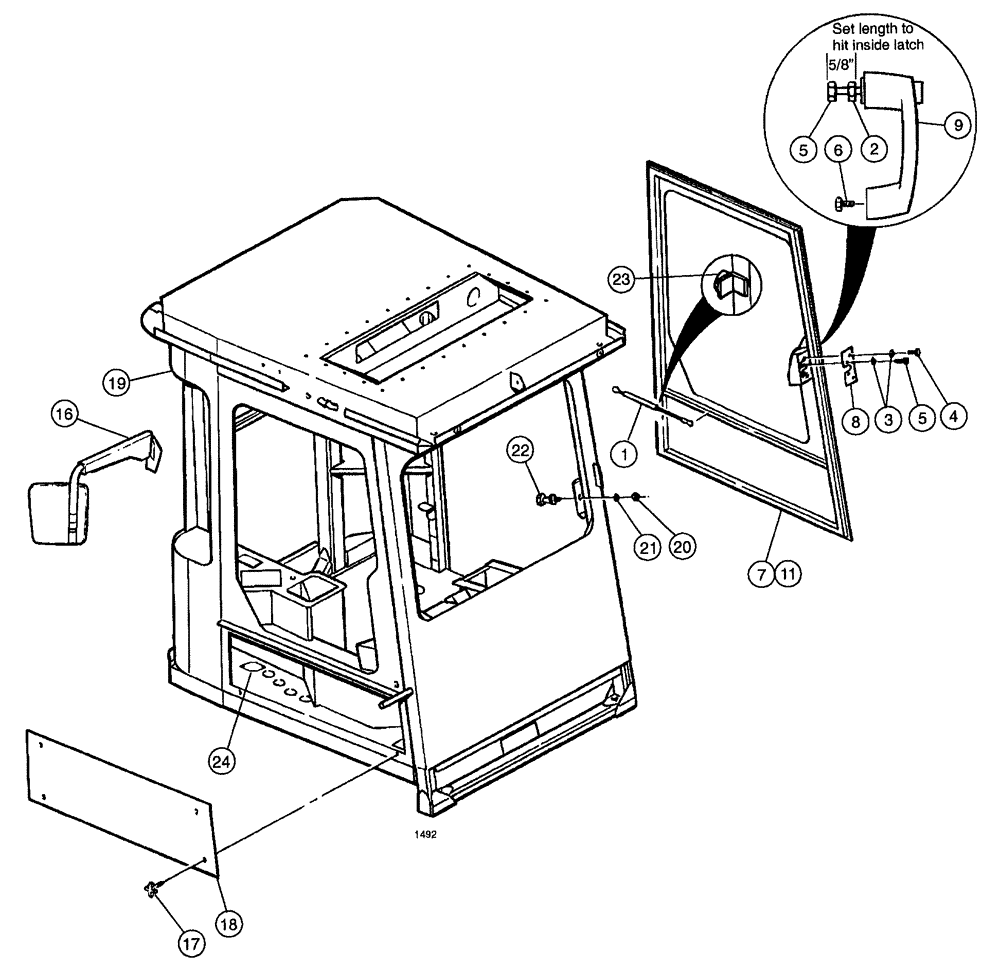

Запчасти Case IH SPX4260 (018) - DOORS, MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

0

BN67932

DOOR ASSY.

Entry LH

1шт.

Includes Refs. 1 - 11

1шт.

1

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

§

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Incudes service parts for above ref. number

1шт.

§

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Incudes service parts for above ref. number

1шт.

2

BN50053

NUT

Hex, 1/4"-20, G5

1шт.

3

BN50138

WASHER,1/4", SS

4шт.

4

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

5

50214

BOLT Hex, 1/4"-20 x 1", G5

3шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

7

BN66026

DOOR

1шт.

8

BN66103

LATCH

door, two rotor

1шт.

+

BN67951

CAP

Vinyl, .060 x .437 x 1.5

1шт.

Indicates associated part

1шт.

9

BN66106

HANDLE

(DOOR) outside

1шт.

+

BN303475

DOOR LOCK KEY

set of 2

1шт.

Indicates associated part

1шт.

11

BN67957

DOOR SEAL

clip on, 190"

1шт.

*16

185773A1

MIRROR

2шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

*+

1530998C2

SUPPORT

holder

2шт.

Indicates associated part, *Part available only through Case's North American Parts Organization (NAPO).

1шт.

*+

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

Indicates associated part, *Part available only through Case's North American Parts Organization (NAPO).

1шт.

+

BN314748

MOUNTING PARTS

mirror, RH

1шт.

Indicates associated part

1шт.

+

BN314798

MOUNTING PARTS

mirror, LH

1шт.

Indicates associated part

1шт.

*+

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

6шт.

Indicates associated part, *Part available only through Case's North American Parts Organization (NAPO).

1шт.

17

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

18

BN303165

PANEL, SIDE

access

1шт.

+

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

2шт.

Indicates associated part

1шт.

+

84167815

RUBBER SEAL

Electrical Bay, Bulk Length 9'

1шт.

Indicates associated part

1шт.

+

BN303278

WASHER

3/8 NP SS

4шт.

Indicates associated part

1шт.

+

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

Indicates associated part

1шт.

+

BN311626

HANDLE

Molded Grab, Black

1шт.

Indicates associated part

1шт.

+

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

2шт.

Indicates associated part

1шт.

19

BN65970

CAB

1шт.

20

BN50114

NUT

7/16"-14 Hex, G5

1шт.

21

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

22

BN66109

CATCH

door, striker

1шт.

23

BN69132

EXTENSION

Switch, Domelight

1шт.

§

BN300873

BULB

Halogen, H3 12 volt

6шт.

Incudes service parts for above ref. number

1шт.

24

BN69742

ELEC. TERMINAL PIN,Male

Bulkhead , .22 Pin Male

1шт.

+

BN69743

LOCK

bulkhead connector

2шт.

Indicates associated part

1шт.

+

BN16108

PLUG

Weatherpak Connector

22шт.

Indicates associated part

1шт.

¤

BN306057

CONTACT HOUSING

terminal

1шт.

Indicates an "or" situation

1шт.

+

BN50052

LOCK NUT,1/4"-20, USR, SS

2шт.

Indicates associated part

1шт.

+

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

Indicates associated part

1шт.
