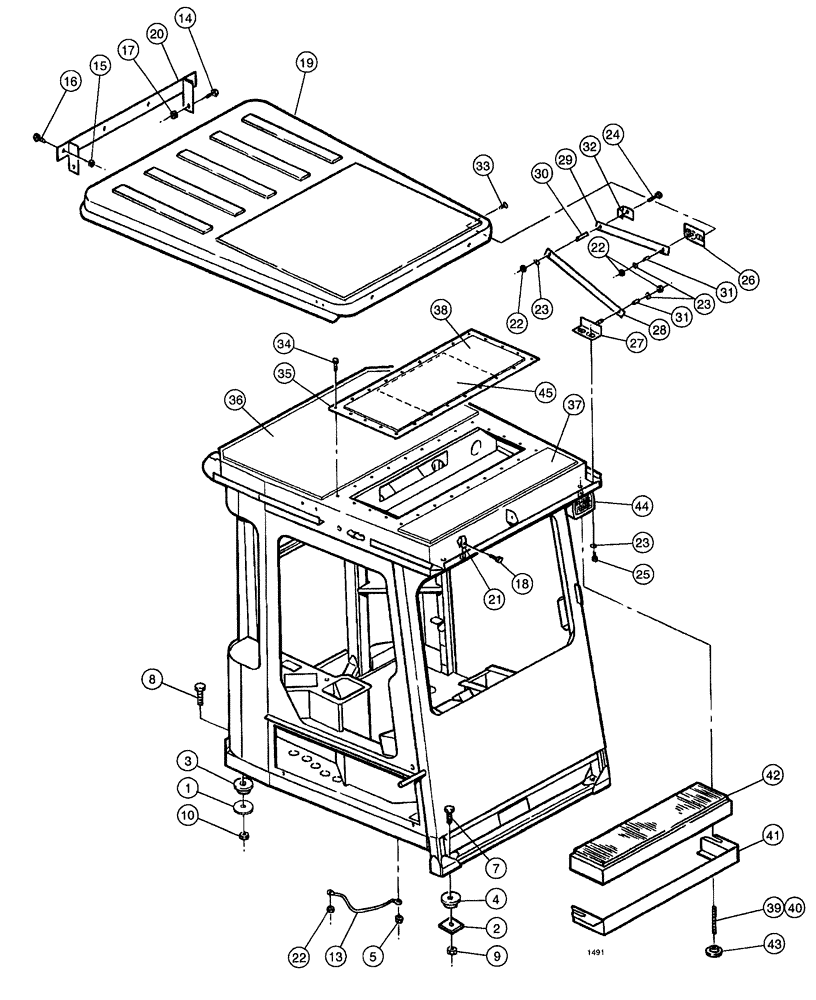

Запчасти Case IH SPX4260 (016) - ROOF AND CAB MOUNT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

4шт.

2

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

2шт.

3

BN29242

ISOLATOR

Rubber 3/4" Bore

2шт.

4

BN29243

ISOLATOR

Rubber 1/2" Bore

2шт.

5

BN50061

LOCK NUT

3/8-16", UNC, Whiz

1шт.

7

50792

BOLT Hex, 1/2"-13 x 5", G8

2шт.

8

BN50988

BOLT

HH, 3/4"-10 x 3.5, G8

2шт.

9

BN50998

LOCK NUT

1/2-13 TOP, 8, PL

2шт.

10

BN50999

LOCK NUT

3/4-10 TOP, 8, PL

2шт.

13

BN69830

GROUND CABLE

Chassis

2шт.

14

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

15

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

16

BN50222

BOLT

5/16-18 x .75, TH, SS, PH

4шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

18

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

2шт.

19

BN311759

ROOF

Cab (Red)

1шт.

20

BN67226

HINGE

half

1шт.

21

BN69828

NUT

U- 3/8-16

2шт.

22

BN50051

NUT,1/4"-20, USR

3шт.

23

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

8шт.

24

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

1шт.

25

BN50205

BOLT

1/4"-20, 3/8, HH, 5

2шт.

26

BN68325

PLATE

upper

1шт.

27

BN68326

PLATE

lower

1шт.

28

BN68327

SUPPORT

brace, lower

1шт.

29

BN68328

SUPPORT

brace, upper

1шт.

30

BN68329

BUSHING

1шт.

31

BN68330

BUSHING

2шт.

32

BN68331

STOP LOCK

LOCK stop

1шт.

33

BN314570

BOLT

1/4-20 x 3/8, TH, SS, PHIL

2шт.

34

50366

BOLT Hex, 3/8"-18 x 5", G5

24шт.

35

BN304231

PANEL

roof access

1шт.

+

BN304228

RUBBER SEAL

RUBBER SEAL 1/4 x 3/4 x 43.5

1шт.

Indicates associated part

1шт.

+

BN304229

RUBBER SEAL

RUBBER SEAL 1/4 x 3/4 x 45.75

1шт.

Indicates associated part

1шт.

+

BN304230

RUBBER SEAL

1/4 x 3/4 x 19

2шт.

Indicates associated part

1шт.

36

BN304240

RUBBER INSULATOR

cab roof, rear

1шт.

37

BN304239

RUBBER INSULATOR

cab roof, front

1шт.

38

BN304232

RUBBER INSULATOR

access panel

1шт.

39

BN22055

ROD

3/8"-16, x 2.38, SS, Threaded

2шт.

40

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

41

BN65271

RETAINER

Weldment, Filter

1шт.

42

BN65288

FILTER

Air (Charcoal)

1шт.

43

BN65448

KNOB

3/8"-16 (F)

2шт.

44

BN66131

WORK LAMP,Halogen, 12V, 55W, Clear

Flood - Pedestal Mount

4шт.

§

BN300873

BULB

Halogen, H3 12 volt

1шт.

45

BN319432

FOAM

Roof Panel, Bottom

1шт.
