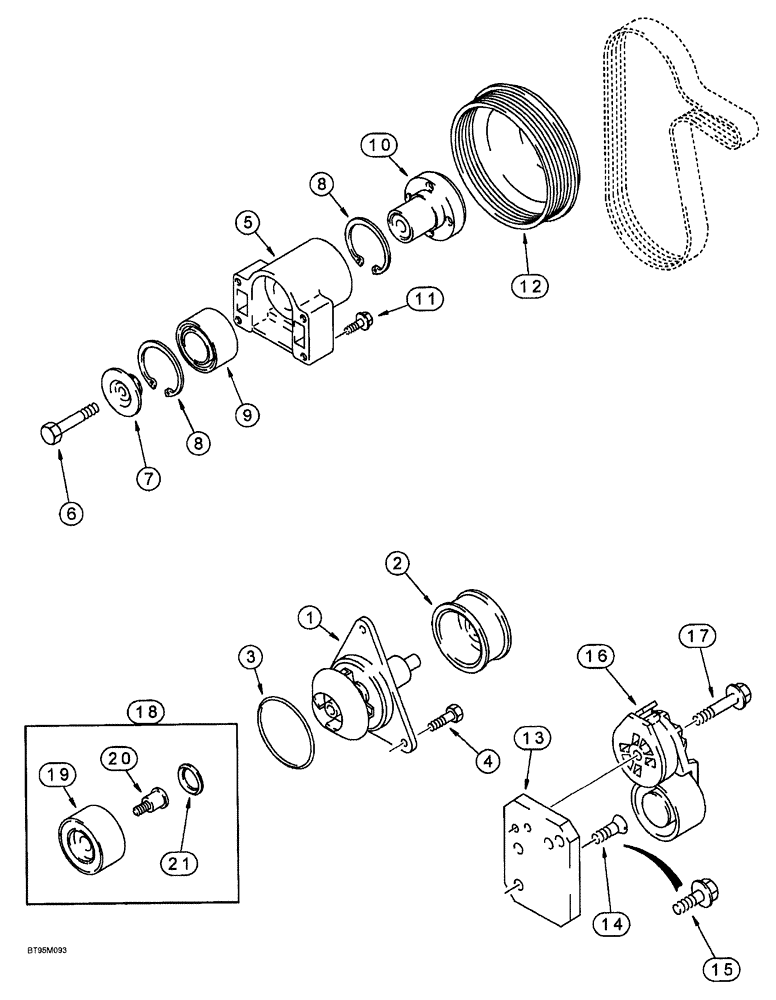

Запчасти Case IH SPX4260 (032) - WATER PUMP SYSTEM (10) - ENGINE

0

A77704

PUMP, WATER

KIT

1шт.

J800976R

REMAN-WATER PUMP

SPX4260 (4/99-11/01), Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water new

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-Ring

1шт.

4

J926125

BOLT,Hex, M8 x 28mm, Cl 8.8

BOLT - hex special 8 - 1.25 x 28 mm

3шт.

5

J929458

SUPPORT

FAN

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, M10 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

FAN hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

FAN

1шт.

11

87015867

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

FAN 1.1 TO 1 RATIO

1шт.

13

J925188

SUPPORT

BRACKET belt tensioner

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

15

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

16

J918944

BELT TENSIONER

BELT

1шт.

17

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

1шт.

18

A77817

KIT

Pulley Assembly, Belt Tension

1шт.

19

NSS

NOT SOLD SEPARAT

BELT TENSIONER pulley

1шт.

20

NSS

NOT SOLD SEPARAT

PULLEY bolt

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT seal

1шт.
