Запчасти Case IH SPX4260 (030) - RADIATOR FAN AND MOUNTING PARTS (10) - ENGINE

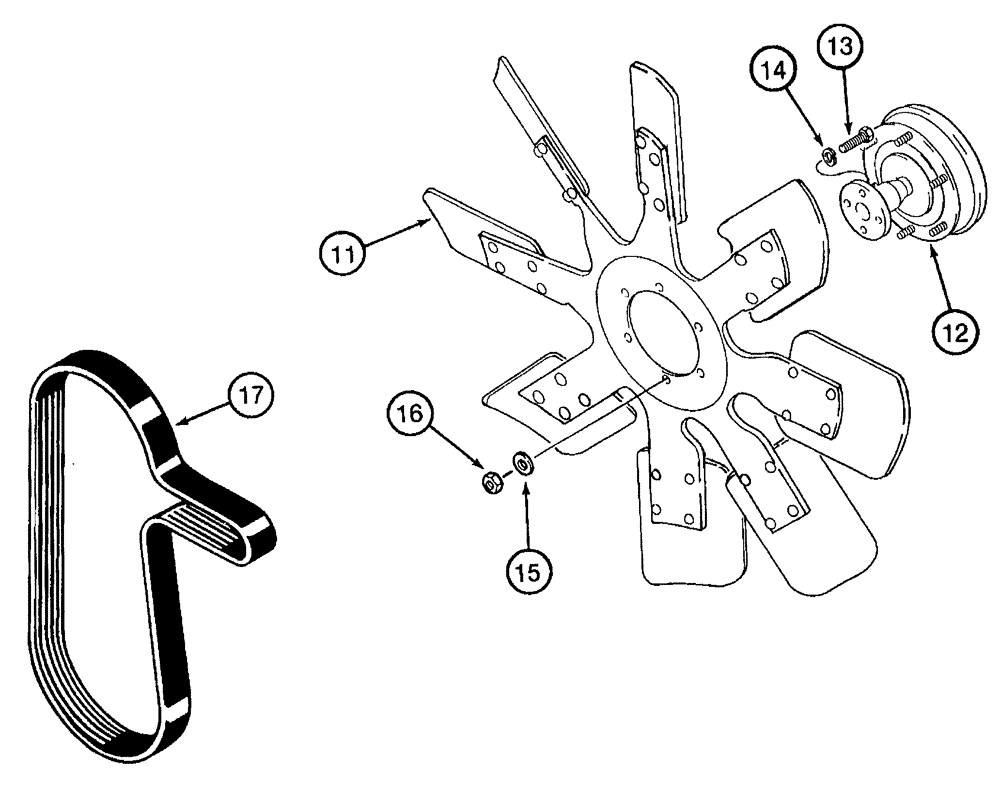

Схема запчастей Case IH SPX4260 - (030) - RADIATOR FAN AND MOUNTING PARTS (10) - ENGINE
13
14
11
17
16
12
15

Артикул

Название

Примечание

Количество

*11

FAN - engine (See Figure 88)

1шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

*12

229596A2

DRIVE,Cooling Fan Viscous

FAN

1шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

*13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

*14

892-11010

LOCK WASHER,M10

4шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

*15

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

6шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

*16

825-1408

NUT,M8, Cl 8

6шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

*17

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

Fan

1шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

Выбрано товаров: 14
