(310) - ELECTRICAL GROUP, DICKEY-JOHN® (AIM COMMAND)

Запчасти Case IH SPX4260 (310) - ELECTRICAL GROUP, DICKEY-JOHN® (AIM COMMAND) (78) - SPRAYING

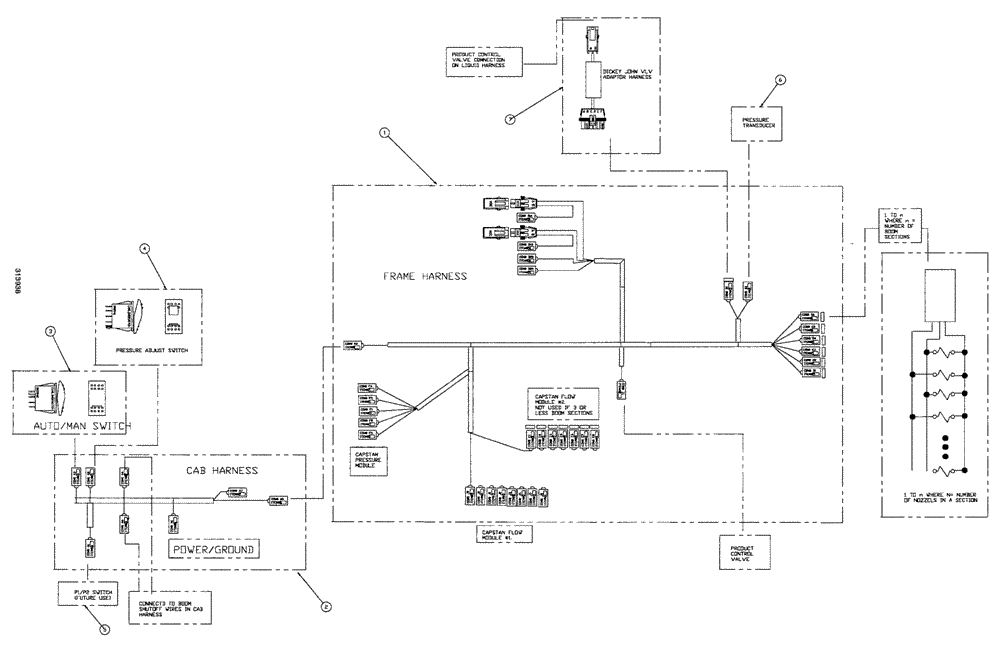

Схема запчастей Case IH SPX4260 - (310) - ELECTRICAL GROUP, DICKEY-JOHN® (AIM COMMAND) (78) - SPRAYING
1
4
3
7
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN306506

WIRE HARNESS

Synchro, SPX

1шт.

2

BN306532

HARNESS

Synchro, SPX cab

1шт.

3

BN65941

SWITCH

w/ handle on-none-on

1шт.

4

BN65942

SWITCH

W/Handle On-Off-On

1шт.

5

BN65933

PLUG

Switch Mount Panel

1шт.

6

87268470

SENSOR

Pressure, Aim Command

1шт.

7

BN95863

BLOCK DRIVER

valve actuator, DJ1, DICKEY-john® only

1шт.
