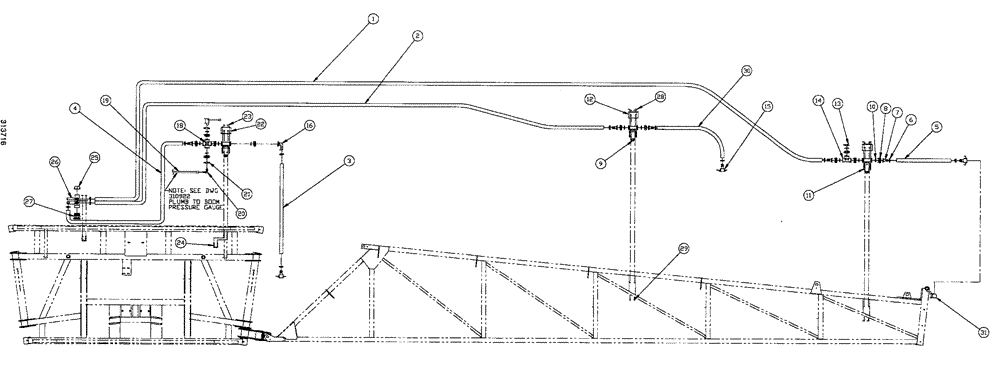

Запчасти Case IH SPX4260 (302) - 90 6 BOOM SHUTOFF (RH) (AIM COMMAND) (78) - SPRAYING

1

BN311040

HOSE

EPDM 1" ID x 32.5'

1шт.

2

BN311044

HOSE

1" EPDM x 22.5'

1шт.

3

BN53747

FLEXIBLE HOSE,1.00" ID x 48.00"

1шт.

4

BN69393

HOSE

1" EPDM X 58"

1шт.

5

BN311042

HOSE

1" EPDM x 82"

1шт.

6

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

7

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

barb 1" flange x 1"

5шт.

8

BN303203

CLAMP,1" Flange

1 FL

14шт.

9

BN311711

STRAINER ASSY.

1" -50 mesh flange

3шт.

10

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

14шт.

11

BN313789

U-BOLT

BOLT "U" 1/4"-20 1.75" ID

6шт.

12

BN313790

BOOM

AIM, bracket valve mount

2шт.

13

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

14

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

1шт.

15

BN53668

COUPLING

1" Female, HS SHK

3шт.

16

435587A1

FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow

1" Flange x 1" Hose Barb, Poly

1шт.

18

BN313029

CROSS

1" flange

1шт.

19

BN312955

HOSE

3/8" ID EPDM x 376"

1шт.

20

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

21

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

2шт.

22

BN313814

MOUNTING PARTS

strainer

1шт.

23

BN300393

NUT

M10-1.5, FLN, 10.9

2шт.

24

BN313820

U-BOLT

BOLT "U" M-10

1шт.

25

BN73739

CAP

1 1/2" poly pipe

1шт.

26

BN66643

MANIFOLD

outlet - 6 port

1шт.

27

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

28

BN304417

NUT

M6-1, NLN, 10.9

16шт.

29

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

30

BN53756

HOSE,42.00"

1шт.

31

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.
