(298) - 90 X 20" 3-WAY NOZZLE, LH/RH (AIM COMMAND)

Запчасти Case IH SPX4260 (298) - 90 X 20" 3-WAY NOZZLE, LH/RH (AIM COMMAND) (78) - SPRAYING

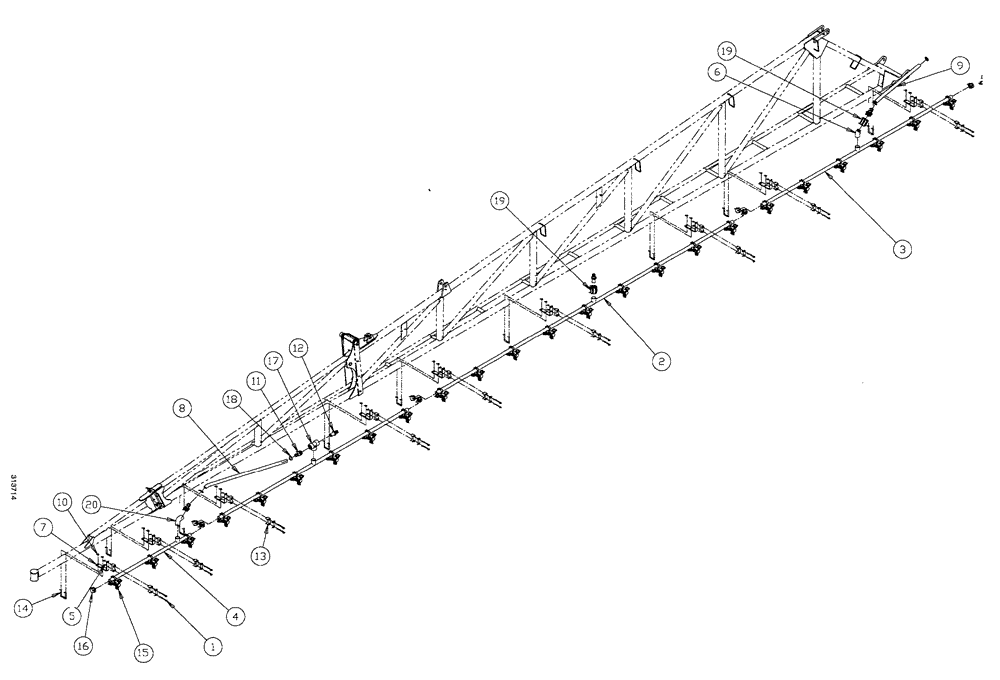

Схема запчастей Case IH SPX4260 - (298) - 90 X 20" 3-WAY NOZZLE, LH/RH (AIM COMMAND) (78) - SPRAYING
5
17
1
10
9
19
3
8
19
16
2
12
6
18
15
20
11
14
13
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

18шт.

2

BN313177

TUBE

20" SP x 9

1шт.

3

BN313176

TUBE

20" SP x 6

2шт.

4

BN313175

TUBE

20" SP x 3

1шт.

5

BN306618

NUT

M6-1, WLN, 10.9

18шт.

6

BN313198

ELBOW

1 1/4" NPT ST 45°

1шт.

7

BN313178

MOUNTING PARTS

R-LH boom 1"

9шт.

8

BN53821

HOSE

EPDM 1" ID x 100"

1шт.

9

BN53844

HOSE

EPDM 1" ID x 120"

1шт.

10

BN50062

LOCK NUT,3/8"-16, Stainless Steel

18шт.

11

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

3шт.

12

BN313199

ADAPTER,1" Male Adapter-1-1/4" Male Thread

1 1/4" male CAM

2шт.

13

BN67054

CLAMP

1.315" OD

9шт.

14

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

9шт.

15

BN313736

NOZZLE INJECTION

3-way wet 1" pipe

24шт.

16

BN73606

CAP

1" NPT, Poly Pipe

8шт.

17

BN73662

TEE

1-1/4", Poly

1шт.

18

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

19

BN305269

COUPLING

1-1/4", Poly

2шт.

20

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.
