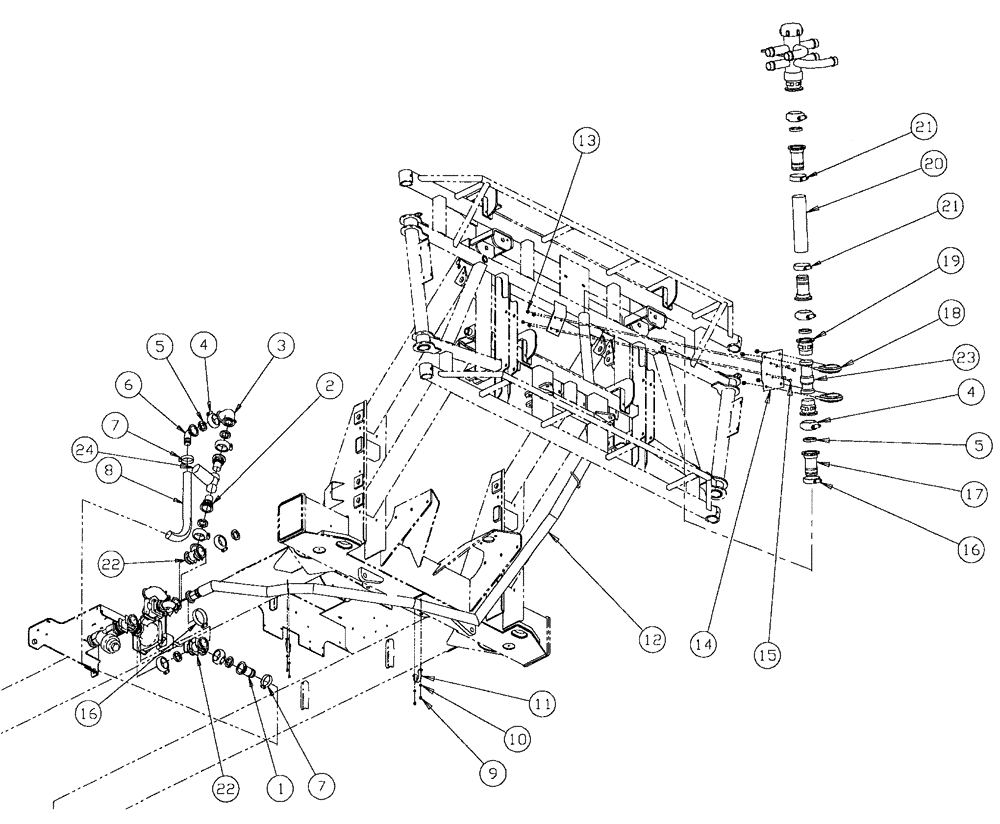

Запчасти Case IH SPX4260 (296`) - RAVEN BYPASS PLUMBING GROUP (AIM COMMAND) (78) - SPRAYING

1

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

2

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

Straight 2" Flange x 1.25 Male

2шт.

3

BN304318

COUPLING,90 Degree Elbow, 2" Flange x 2" Flange, Poly

2" flange, 90

1шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

9шт.

5

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

9шт.

6

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

7

BN76093

HOSE CLAMP

#28, SS

2шт.

8

BN313422

HOSE

knaflex 1 1/2 D x 2'

1шт.

9

86528579

NUT,M8 x 1.25

4шт.

10

BN300497

WASHER,M8, 10.9

4шт.

11

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

2шт.

12

BN313088

HOSE,2.00" ID x 13.50'

EPDM

1шт.

13

BN304419

NUT

M10-1.5, NLN, 10.9

4шт.

14

BN308002

MOUNTING PARTS

meter

1шт.

15

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

4шт.

16

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

17

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

3шт.

18

BN307786

CLAMP

U-bolt W/INRT, 3.5 ID

2шт.

19

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

2шт.

20

BN313423

HOSE,2.00" ID x 16.00"

EPDM

1шт.

21

BN76056

HOSE CLAMP

#36

2шт.

22

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

2шт.

23

BN306098

METER

flow- RFM 100

1шт.

24

BN302855

VALVE

1 1/2" 440 Assembly

1шт.
