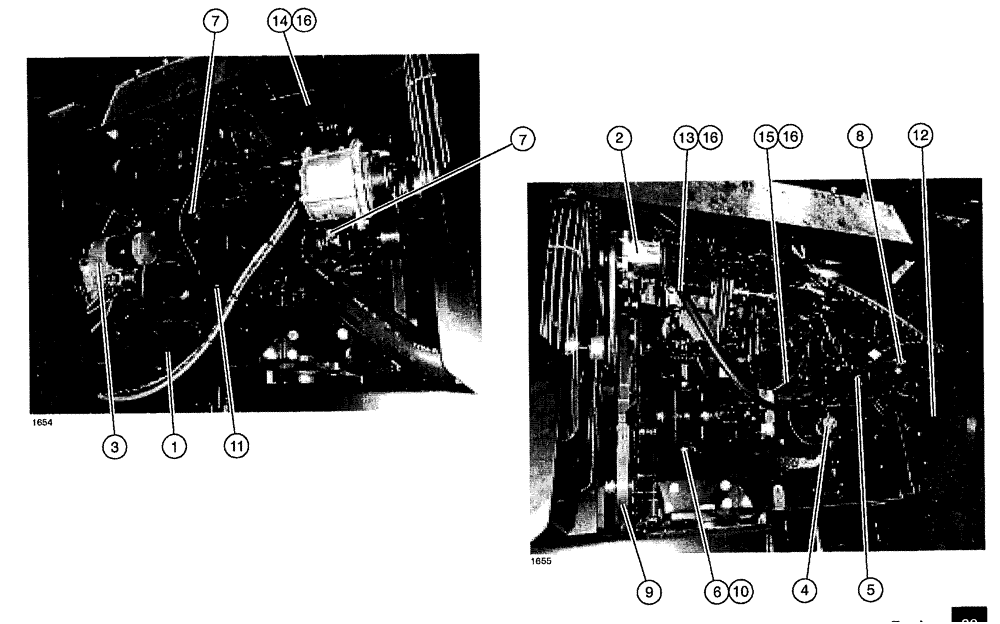

Запчасти Case IH SPX4260 (029) - ENGINE GROUP (10) - ENGINE

1

321944A1

ENGINE

CDC

1шт.

2

NSS

NOT SOLD SEPARAT

PACKAGE AIR COND. COMP

1шт.

See Fig. 084

1шт.

3

NSS

NOT SOLD SEPARAT

PACKAGE STARTER-ALT

1шт.

See Fig. 084

1шт.

4

326346A2

SENDER UNIT

SENDER pressure

1шт.

5

326347A1

TEMPERATURE SENDER

temperature 1/2-14 NPTF

1шт.

6

BN310636

STUD

M12-1.75 x 90 8.8

2шт.

*7

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

2шт.

8

BN310569

ELBOW

hosebarb, 1/2 MPT x 3/8 x 90º

1шт.

*9

J911580

V-BELT,27.92mm W x 1739.90mm L, 8 Ribs

1шт.

10

100038

NUT,M12 x 1.75, Cl 8

2шт.

11

NSS

NOT SOLD SEPARAT

FILTER-oil

1шт.

See Fig. 044

1шт.

12

NSS

NOT SOLD SEPARAT

KIT-FUEL FILTER

1шт.

See Fig. 076

1шт.

13

BN313746

FUEL HOSE,0.375" ID x 60.0"

1шт.

14

BN313747

FUEL HOSE,0.375" ID x 10.0", SAE 30R6,SAE 30R7

1шт.

15

BN313748

FUEL HOSE,0.31" ID x 55.00"

fuel 5/16" X 55"

1шт.

16

BN76094

HOSE CLAMP

SS #M4

6шт.
