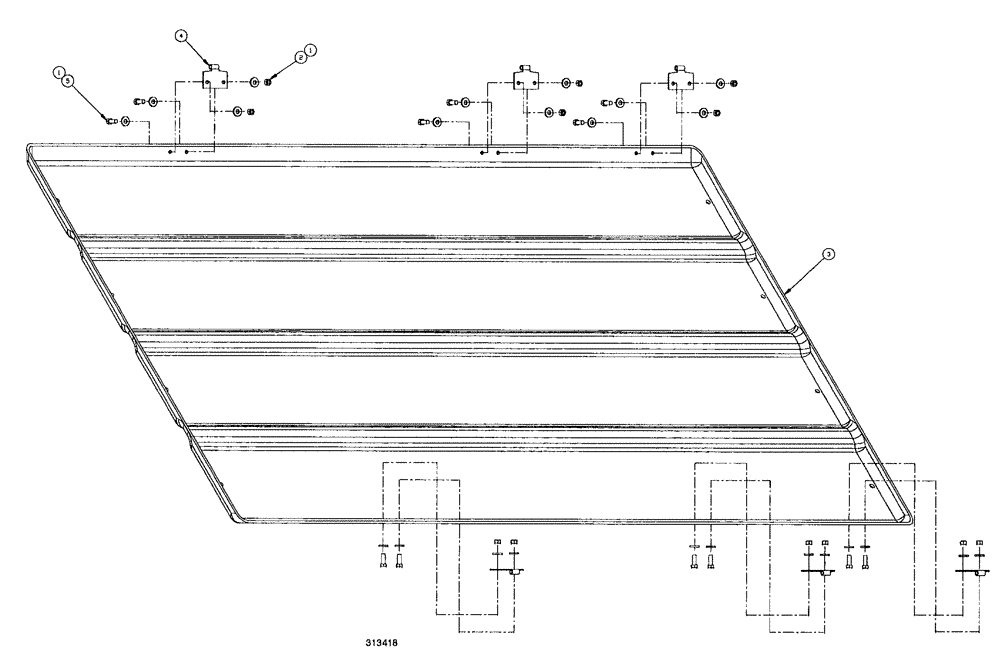

Запчасти Case IH SPX4260 (295) - REAR PAN ASSEMBLY (78) - SPRAYING

1

BN300506

WASHER

M8, Stainless Steel

24шт.

2

86528579

NUT,M8 x 1.25

12шт.

3

BN310704

PAN ASSY.

belly, rear

1шт.

4

BN310771

HINGE

pan

6шт.

5

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.
