(294) - REAR BELLY PAN ASSEMBLY

Запчасти Case IH SPX4260 (294) - REAR BELLY PAN ASSEMBLY (78) - SPRAYING

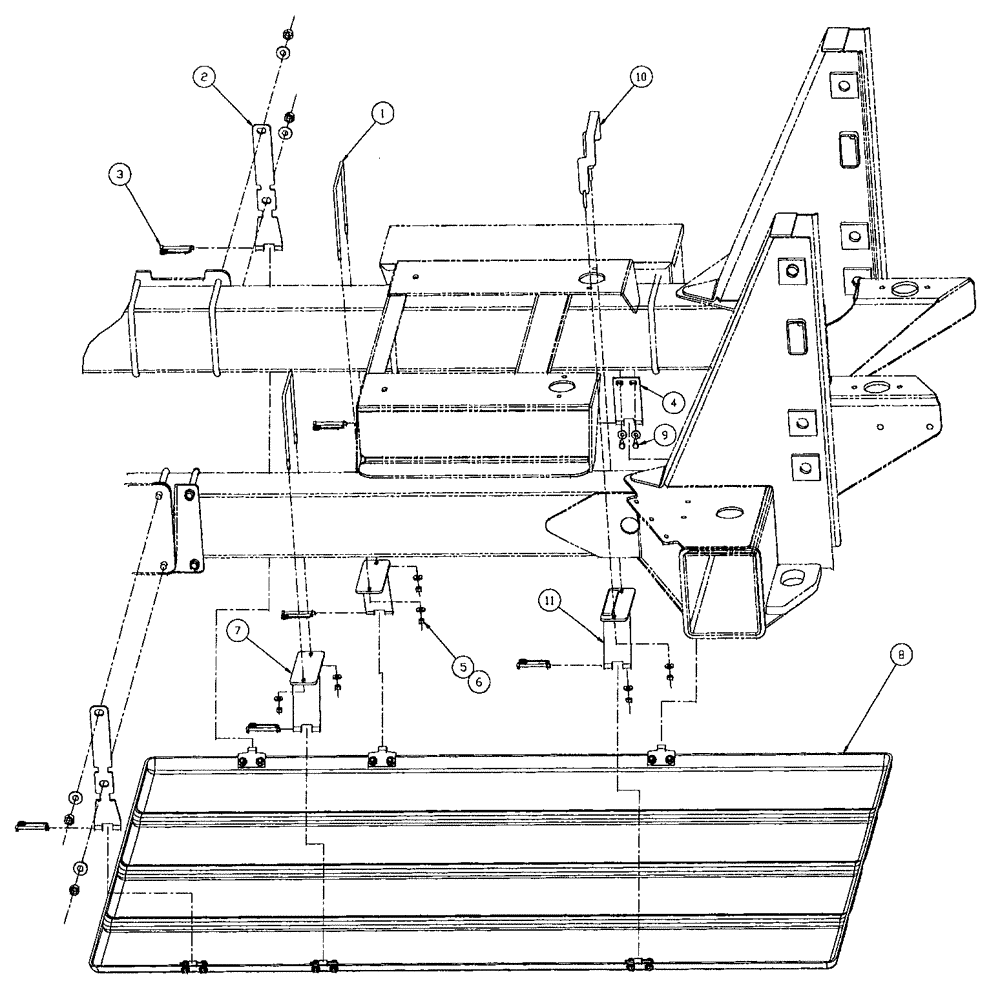

Схема запчастей Case IH SPX4260 - (294) - REAR BELLY PAN ASSEMBLY (78) - SPRAYING
8
1
10
4
11
9
7
6
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN311772

U-BOLT

BOLT "U" M8 x 8.63 x 6.06

2шт.

2

BN313359

MOUNTING PARTS

side

2шт.

3

BN311775

PIN

snap, safety

6шт.

4

BN313357

MOUNTING PARTS

pan, battery box

1шт.

5

86528579

NUT,M8 x 1.25

6шт.

6

BN300506

WASHER

M8, Stainless Steel

8шт.

9

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

7

BN310761

MOUNTING PARTS

rear

2шт.

8

ASSY, PAN (rear) (See Figure 295)

1шт.

10

BN313511

U-BOLT

BOLT "U" strap

1шт.

11

BN313805

MOUNTING PARTS

rear LH

1шт.
