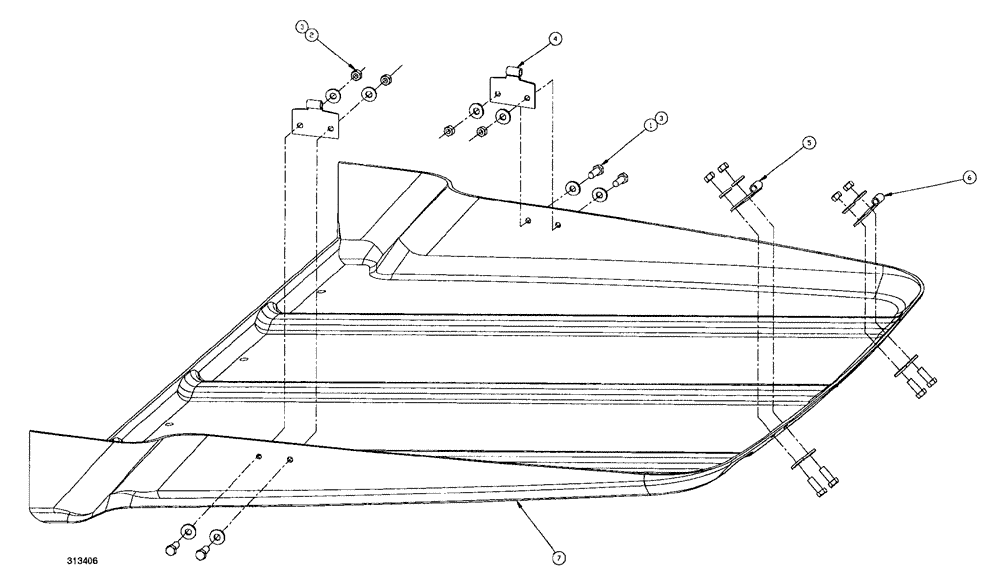

Запчасти Case IH SPX4260 (290) - FRONT PAN ASSEMBLY (78) - SPRAYING

2

86528579

NUT,M8 x 1.25

8шт.

3

BN300506

WASHER

M8, Stainless Steel

16шт.

1

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

4

BN310771

HINGE

pan

2шт.

5

BN310765

HINGE

RT, FRT

1шт.

6

BN310766

HINGE

FRT, LF

1шт.

7

BN310701

PAN ASSY.

belly, front

1шт.
