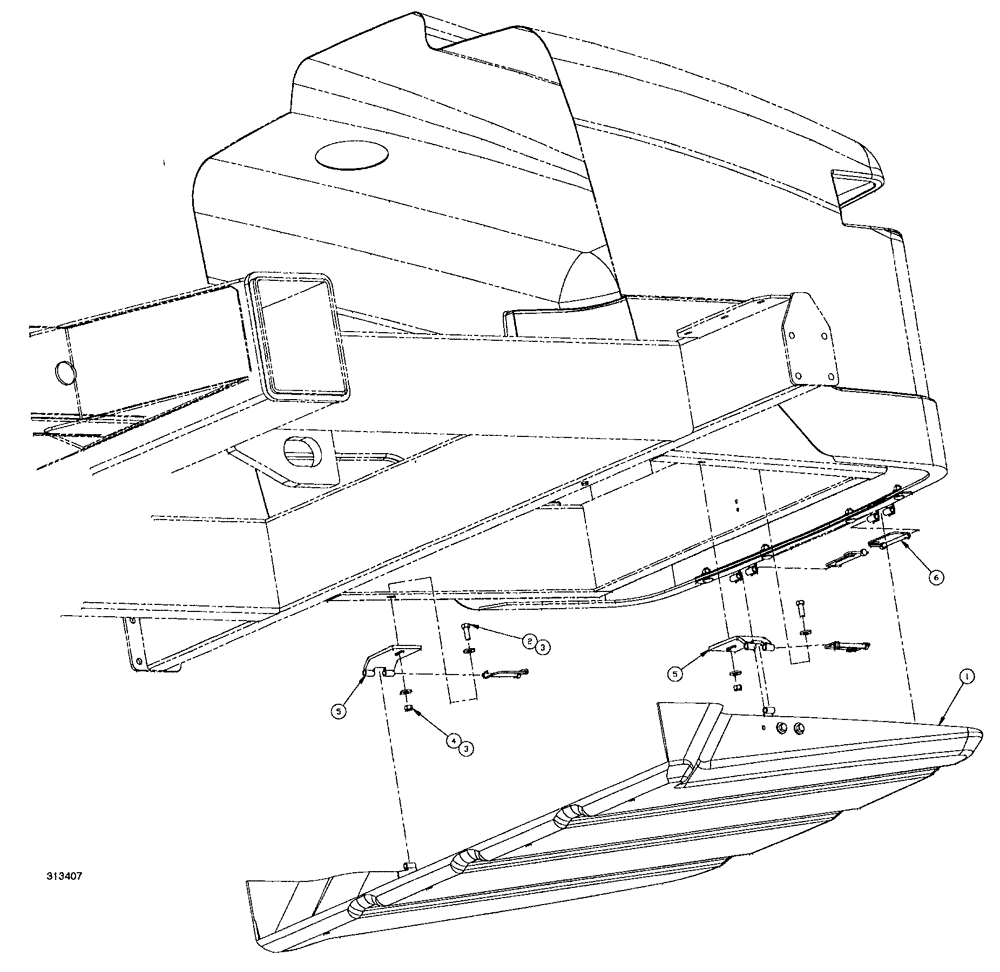

Запчасти Case IH SPX4260 (289) - FRONT BELLY PAN ASSEMBLY (78) - SPRAYING

1

ASSY, PAN (front) (See Figure 290)

1шт.

2

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

3

BN300506

WASHER

M8, Stainless Steel

4шт.

4

86528579

NUT,M8 x 1.25

2шт.

5

BN313356

HINGE

side, front

2шт.

6

BN311775

PIN

snap, safety

4шт.
