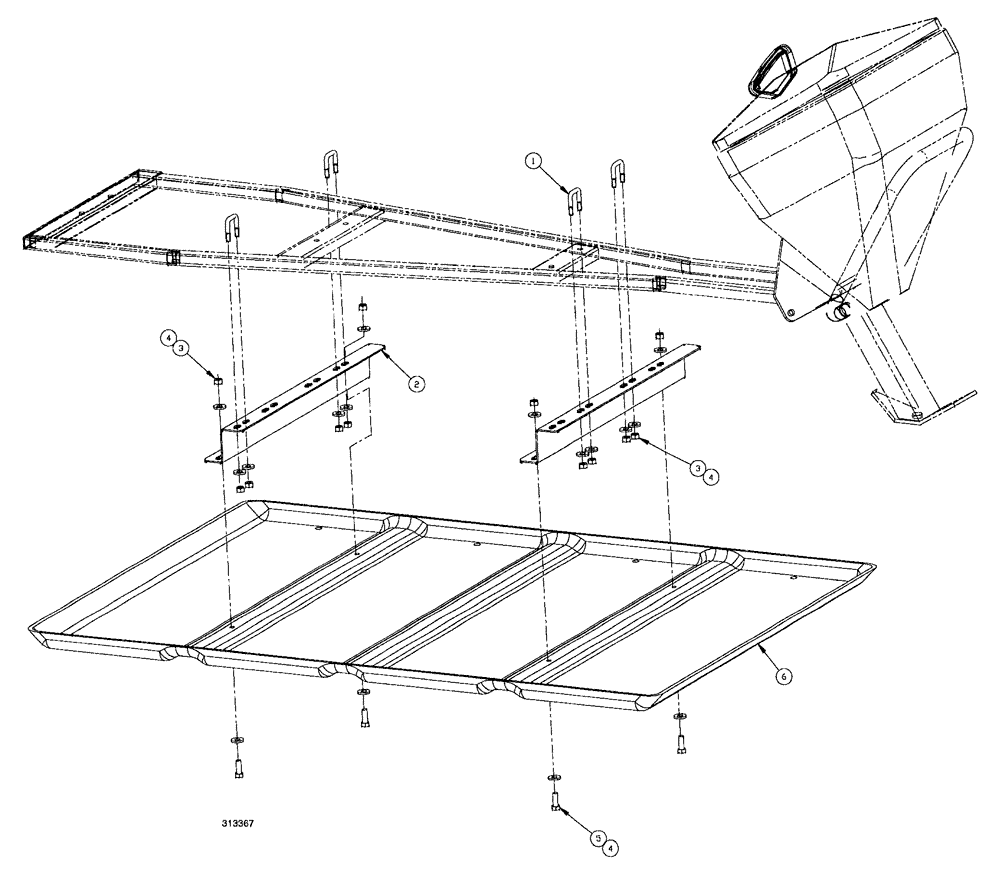

Запчасти Case IH SPX4260 (288) - CHEMICAL INDUCTOR BELLY PAN ASSEMBLY (78) - SPRAYING

1

BN311773

U-BOLT

BOLT "U" M8 x 1.75 x 1.50

4шт.

5

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

2

BN310773

BRACKET

pan, inductor

2шт.

3

86528579

NUT,M8 x 1.25

12шт.

4

BN300506

WASHER

M8, Stainless Steel

16шт.

6

BN310703

PAN ASSY.

belly, inductor

1шт.
