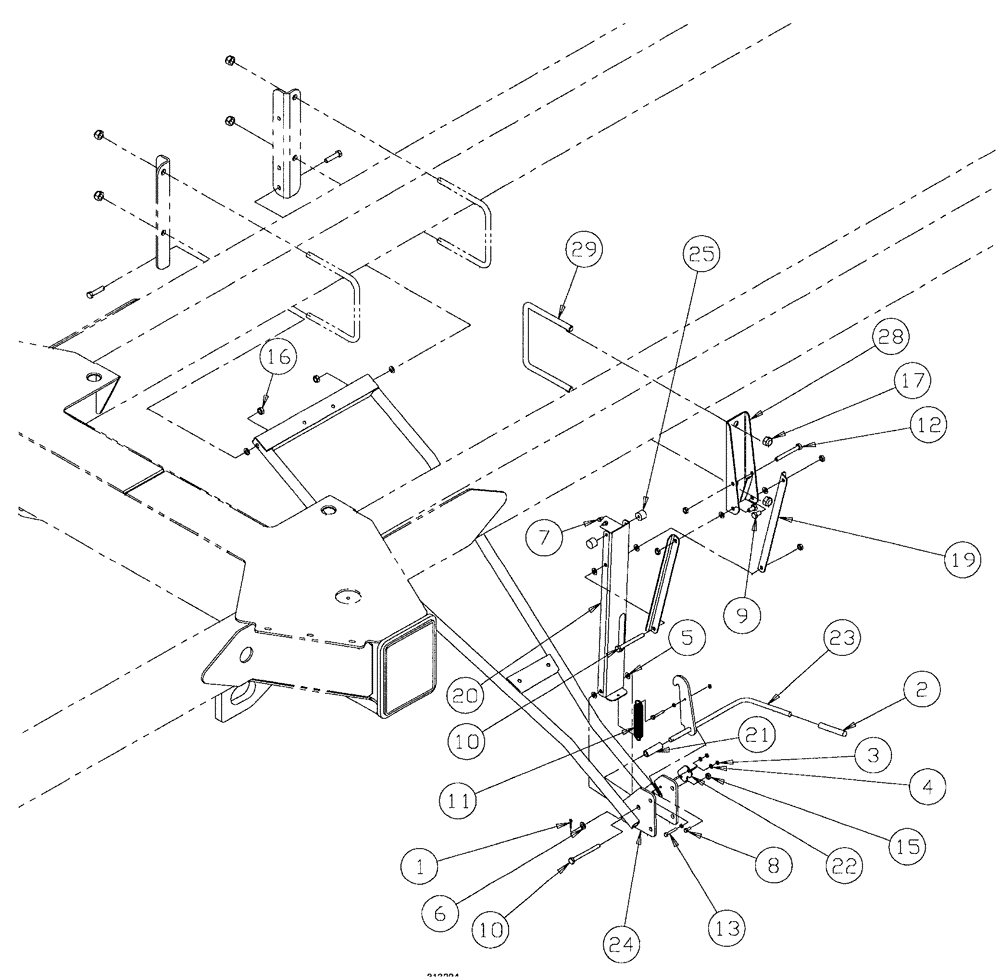

Запчасти Case IH SPX4260 (278) - CHEMICAL INDUCTOR FRAME (78) - SPRAYING

1

BN1630425

PIN, SPLIT (COTTER)

PIN, COTTER 1/8 x 1

1шт.

2

BN29274

GRIP

Black-Vinyl, .5 id x 4" Long

1шт.

3

BN300476

NUT,M6 x 1, Cl 8

5шт.

4

BN300496

WASHER

M6, Flat, 10.9

2шт.

5

BN300499

WASHER,M10, 10.9

6шт.

6

BN300500

WASHER,M12, 10.9

3шт.

7

BN301010

BOLT,Hex, M6 x 10, 10.9, Full Thd

2шт.

8

86639037

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

9

BN301044

BOLT,Hex, M10 x 20, 10.9, Full Thd

2шт.

10

BN301057

BOLT,Hex, M10 x 110, 8.8

2шт.

11

BN71134

SPRING

Tension

1шт.

12

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

1шт.

13

86639188

BOLT,Hex, M6 x 1 x 40mm, Class 10.9

2шт.

14

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

15

BN304419

NUT

M10-1.5, NLN, 10.9

5шт.

16

100038

NUT,M12 x 1.75, Cl 8

2шт.

17

832-46416

NUT,M16 x 2, Cl 8

2шт.

19

BN307155

SUPPORT

brace

2шт.

20

BN307156

CHANNEL

hinge

1шт.

21

BN307162

BUSHING

hinge

1шт.

22

BN307163

PLATE

hinge

1шт.

23

BN307752

LATCH

inductor

1шт.

24

BN307753

FRAME

inductor

1шт.

25

BN309723

BUMPER

female M6 x 20

2шт.

28

BN307751

LATCH

guide

1шт.

29

BN314282

U-BOLT

BOLT "U" 16MM x 7.0 x 8.06

1шт.
