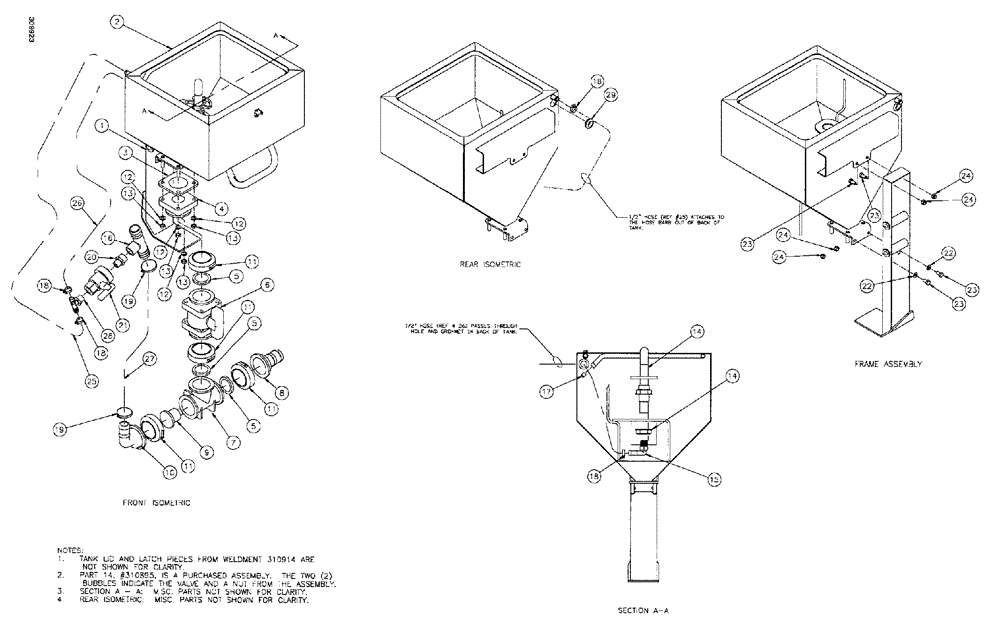

Запчасти Case IH SPX4260 (276) - CHEMICAL INDUCTOR TANK ASSEMBLY (78) - SPRAYING

1

BN309713

FRAME

inductor

1шт.

2

BN320983

TANK

Inductor 2

1шт.

3

BN310827

GASKET

inductor flange

1шт.

4

BN309706

FLANGE

Banjo V20278

1шт.

5

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

6

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

ball, 2" FL, W/T HNDL

1шт.

7

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

8

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

9

BN309960

INSERT

Inductor Venturi

1шт.

10

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1-1/4" Hose Barb, Poly

1шт.

11

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

12

BN50146

WASHER,3/8", Stainless

4шт.

13

BN50064

NUT

3/8"-16, Stainless Steel

4шт.

14

BN310895

VALVE

inductor jug rinse

1шт.

15

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

16

BN311026

TEE

1 1/4" Hose Barb x 1 1/4" Hose Barb x 3/4" fp, Poly

1шт.

17

BN311050

PLUG

Pipe, 1/8" poly hex

1шт.

18

BN75956

CLAMP

#10 SS

4шт.

19

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

20

BN73572

NIPPLE, LUBE

NIPPLE 3/4-1/2, Poly

1шт.

21

BN311100

VALVE

ball 1/2" poly

1шт.

22

BN300497

WASHER,M8, 10.9

2шт.

23

BN301020

BOLT,Hex, M8 x 16, 10.9

4шт.

24

86528579

NUT,M8 x 1.25

4шт.

25

BN314452

HOSE,0.50" ID x 30.00"

EPDM

1шт.

26

BN314453

HOSE,0.50" ID x 50.00"

EPDM

1шт.

27

BN24530

HOSE

1 1/4" EPDM x 6"

1шт.

28

BN311094

TEE

fitting, HB x NPT

1шт.

29

BN85855

GROMMET

Lg, for 1/2" hose

1шт.
