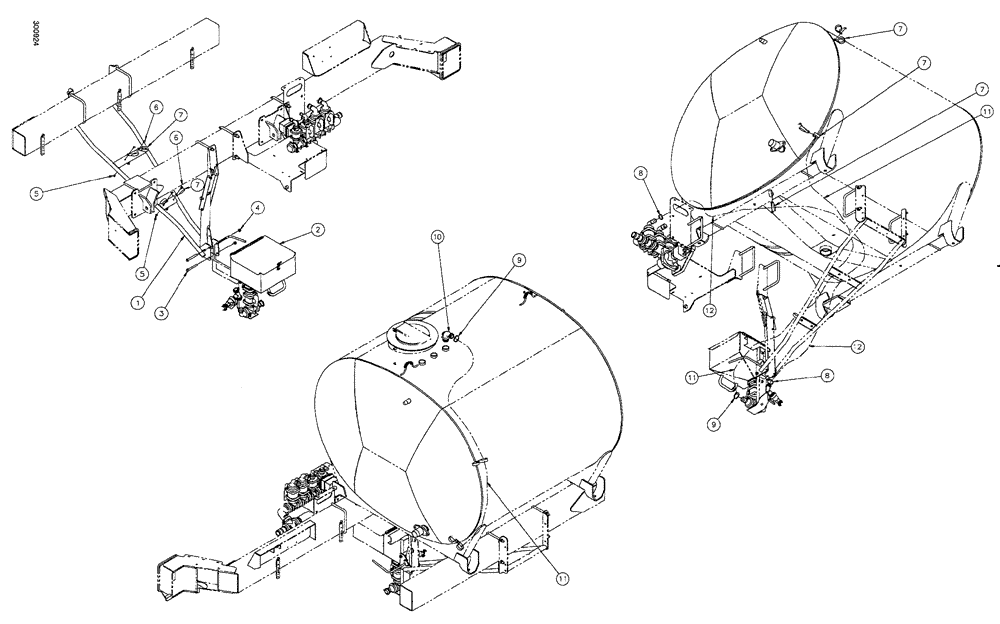

Запчасти Case IH SPX4260 (274) - CHEMICAL INDUCTOR GROUP (78) - SPRAYING

1

CHEM INDUCTOR FRAME, 778 (See Figure 278)

1шт.

2

TANK, CHEM, INDUCTOR ASSY (See Figure276)

1шт.

3

827-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

4

412126

NUT,M12 x 1.75

2шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

5

86528579

NUT,M8 x 1.25

4шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

7

BN52035

CLAMP

2" Dia., Vinyl Coated

7шт.

8

BN76093

HOSE CLAMP

#28, SS

2шт.

9

BN2293386

CLAMP

hose H28 SS

2шт.

10

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

11

BN314392

HOSE

Canaflex

1шт.

12

BN314393

HOSE,1.25" ID

EPDM

1шт.
