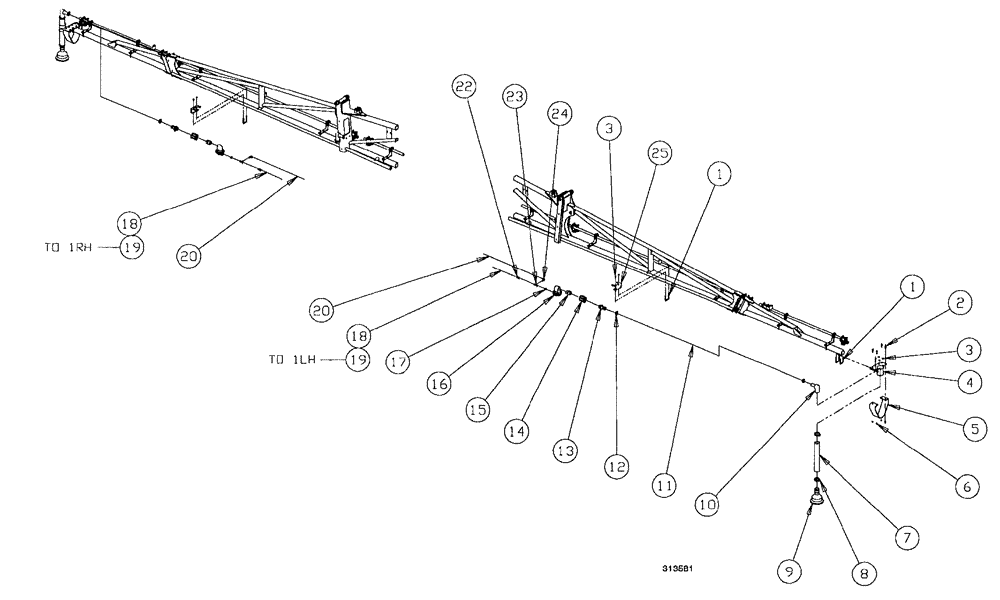

Запчасти Case IH SPX4260 (258) - FOAM MARKER 90 BOOM GROUP (78) - SPRAYING

1

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

6шт.

2

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

8шт.

3

BN50756

NUT

3/8-16, NLN, G5

12шт.

4

BN313416

MOUNTING PARTS

outer, foamtube

2шт.

5

BN313335

SKID/SHOE

Boom breakaway

2шт.

6

BN304419

NUT

M10-1.5, NLN, 10.9

8шт.

7

BN310941

HOSE,2.00" ID x 16.00"

Drop

2шт.

8

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

4шт.

9

BN2403252

BELL

Foam Marker

2шт.

10

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

2шт.

11

BN310942

HOSE,1.25" ID x 10.00'

Foamer

2шт.

12

BN76084

HOSE CLAMP

Adj. #24, SS

4шт.

13

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

2шт.

14

BN305269

COUPLING

1-1/4", Poly

2шт.

15

BN313211

NIPPLE

Hex, 1-1/4"

2шт.

16

BN307636

CHAMBER

Foam Mixing

2шт.

17

BN313188

BUSHING

3/8 NPT - 1/4 NPT, SS

2шт.

18

BN311114

HOSE,0.38" ID x 45.00'

Synflex

2шт.

19

BN314002

LOOM

black, 5/8 x 45'

2шт.

20

BN311113

FLEXIBLE HOSE,45.00"

Synflex

2шт.

22

BN312038

VENTURI

assembly, head, foam

2шт.

23

BN313189

TEE

4-4-4, NPT, SS

2шт.

24

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

25

BN313498

MOUNTING PARTS

foam chamber

2шт.
